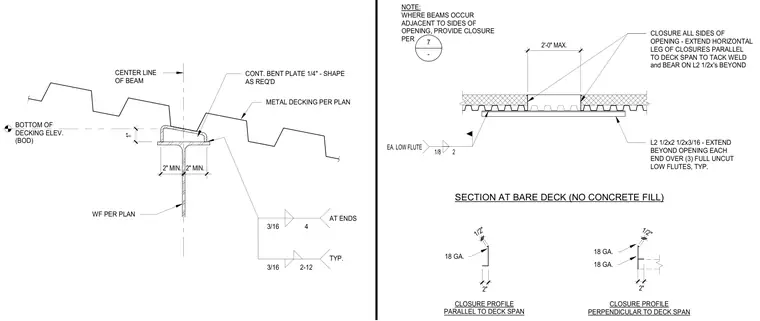

A continuous one-quarter-inch bent plate is shaped as required and positioned over a wide-flange steel beam supporting metal decking per plan. For openings in bare deck without concrete fill, an L2 1/2x2 1/2x3/16 angle extends beyond the opening at each end over three full uncut low flutes typically. Eighteen-gauge closure profiles are provided for both parallel and perpendicular conditions to the deck span, with horizontal legs tack-welded and bearing on the support angles beyond. Where beams occur adjacent to the sides of openings, closure is provided per plan details. Fillet welds of three-sixteenth-inch size are specified typically at two-inch by twelve-inch spacing and four inches at ends.
CLOSURE PROFILE PERPENDICULAR TO DECK SPAN CLOSURE PROFILE PARALLEL TO DECK SPAN 2" 2" 18 GA. 18 GA. 18 GA. 1/2" 1/2" SECTION AT BARE DECK (NO CONCRETE FILL) L2 1/2x2 1/2x3/16 - EXTEND BEYOND OPENING EACH END OVER (3) FULL UNCUT LOW FLUTES, TYP. CLOSURE ALL SIDES OF OPENING - EXTEND HORIZONTAL LEG OF CLOSURES PARALLEL TO DECK SPAN TO TACK WELD and BEAR ON L2 1/2x's BEYOND 2'-0" MAX. 1/8 2 EA. LOW FLUTE NOTE: WHERE BEAMS OCCUR ADJACENT TO SIDES OF OPENING, PROVIDE CLOSURE PER 7 - BOTTOM OF DECKING ELEV. (BOD) CENTER LINE OF BEAM 3/16 2-12 3/16 4 AT ENDS TYP. METAL DECKING PER PLAN CONT. BENT PLATE 1/4" - SHAPE AS REQ'D WF PER PLAN 1" 2" MIN. 2" MIN.
