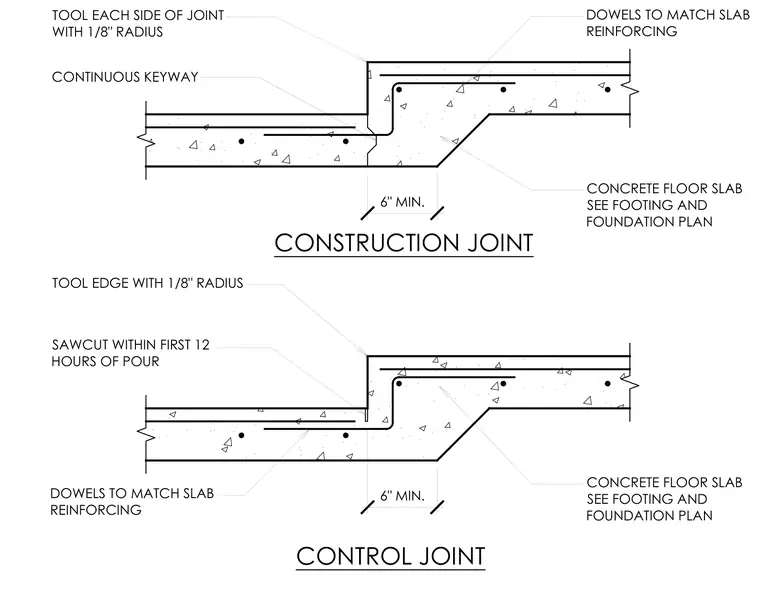

A concrete floor slab transition drops down via a sloped shoulder into a depressed slab area, reinforced with dowels matching the main slab reinforcing. The construction joint features a continuous keyway with the joint edge tooled to a one-eighth inch radius on each side. The control joint incorporates a sawn cut executed within the first twelve hours of the pour alongside a tooled edge with a one-eighth inch radius. Both joint variations maintain a six-inch minimum dimension at the vertical step interface. The slab thickness and underlying conditions are specified per the footing and foundation plan.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN. 1 «• p 4 4 4 4' <7 4 p , 4 4 *4 4 <7 A 7T < A a . P a 4* ■ 7 4 <7 4 .<7 4 <7 • ^ P 4* <7 -d <7
