Structural · S-B9SKK

Cold-Formed Steel Stud Wall at Floor and Roof Transition

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Roofs Floors / Slabs Decks Arches

Connections

Deck Attachment

About this detail

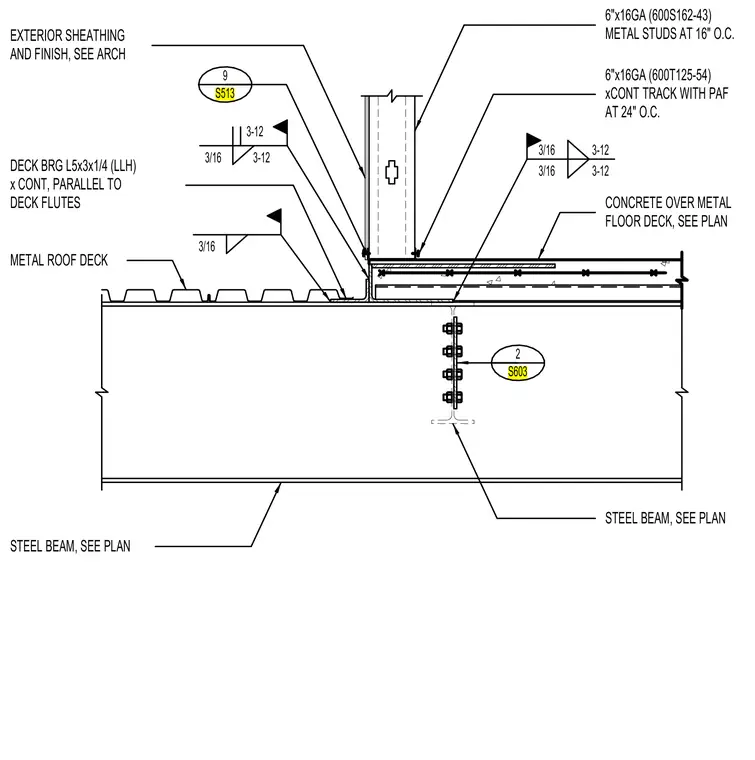

Cold-formed steel framing consisting of six-inch by sixteen-gauge studs spaced at sixteen inches on center bears on a continuous six-inch by sixteen-gauge track secured with powder-actuated fasteners at twenty-four inches on center. The track rests on a concrete slab over a metal floor deck, which is supported by a structural steel beam. Adjacent to the floor slab, a metal roof deck meets the assembly, featuring a continuous five-by-three-by-one-quarter-inch angle for deck bearing placed parallel to the deck flutes. Welds of three-sixteenths inch secure the angle and deck components in place. Exterior sheathing and finishes are coordinated per architectural drawings.
