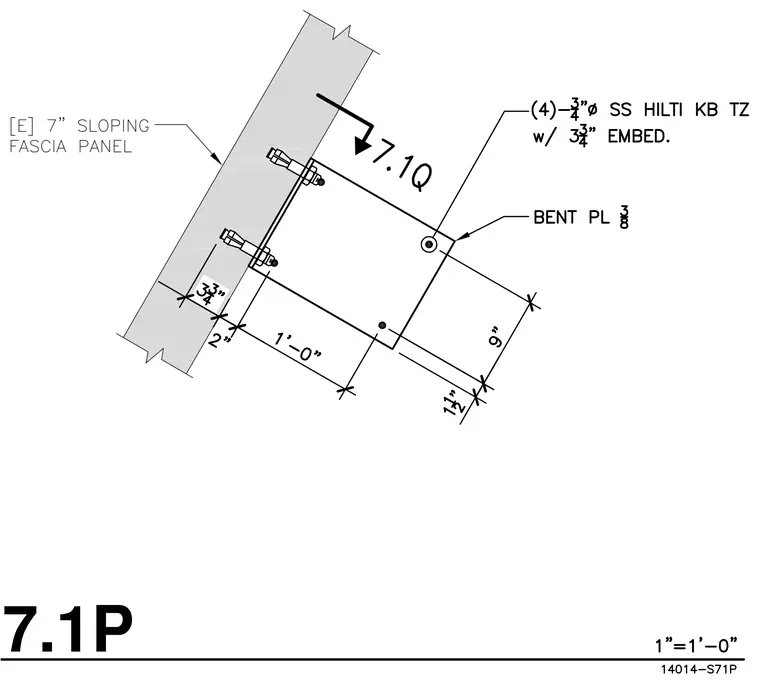

An existing seven-inch sloping fascia panel anchors a three-eighths-inch bent plate connection. Four three-quarter-inch diameter stainless steel Hilti KB-TZ expansion anchors with three and three-quarter-inch embedment secure the plate to the panel. Dimensions indicate a one-foot projection of the bent plate with specific edge distances and fastener spacings.
