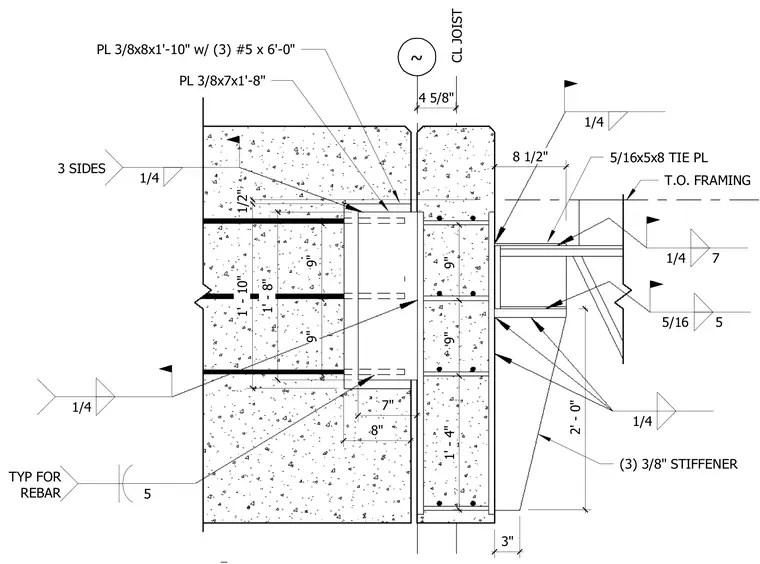

A concrete joist connection anchors to a reinforced concrete element using embedded steel plates and tie plates. A 3/8-inch by 7-inch by 1'-8" plate and a 3/8-inch by 8-inch by 1'-10" plate are cast into the concrete assembly, reinforced by three number 5 rebars measuring 6 feet in length. A 5/16-inch by 5-inch by 8-inch tie plate connects across the assembly, welded with specified fillet welds including 1/4-inch and 5/16-inch sizes. Three 3/8-inch stiffener plates provide additional load distribution support beneath the framing line. Dimensions clearly layout the plate placement, edge distances, and spacing relative to the top of framing reference line.
3 SIDES 1/4 1/4 PL 3/8x7x1'-8" PL 3/8x8x1'-10" w/ (3) #5 x 6'-0" TYP FOR REBAR 5 CL JOIST ~ 4 5/8" 3" 8 1/2" 2' - 0" 9" 9" 1' - 4" 9" 9" (3) 3/8" STIFFENER 1/4 5/16x5x8 TIE PL 1/4 7 1/4 5/16 5 1' - 10" 1/2" T.O. FRAMING 1' - 8" 7" 8"
