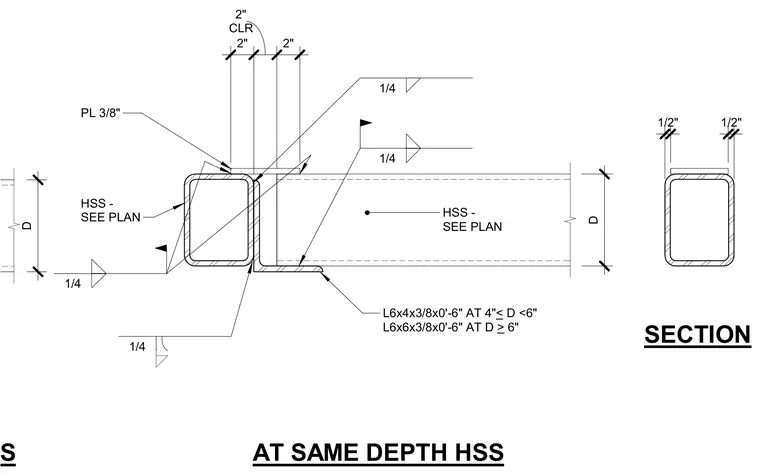

An angle clip and a three-eighths-inch plate connect intersecting hollow structural section members of the same depth. An angle size of L6x4x3/8 by zero-feet-six-inches is used when dimension D is between four and six inches, and an L6x6x3/8 by zero-feet-six-inches angle is used when dimension D is six inches or greater. Fillet welds of one-quarter-inch size secure the connection between the angle, plate, and structural members. A two-inch clearance is maintained between the framing members as indicated.
AT SAME DEPTH HSS AT DIFFERENT DEPTH HSS SECTION HSS - SEE PLAN L6x4x3/8x0'-6" AT 4"< D <6" L6x6x3/8x0'-6" AT D > 6" PL 3/8" HSS - SEE PLAN 2" CLR 2" 2" 1/4 1/4 1/4 1/4 D 1/2" 1/2" D
