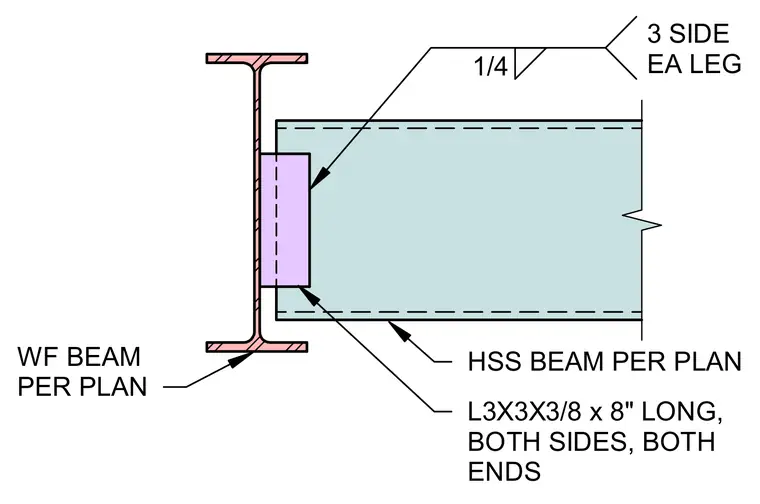

A hollow structural section beam frames into a wide flange beam per plan using structural angle clips sized L3x3x3/8 by eight inches long on both sides and both ends. A quarter-inch fillet weld secures each leg on three sides. The wide flange beam size is specified per plan.
1/4 3 SIDE EA LEG HSS BEAM PER PLAN L3X3X3/8 x 8" LONG, BOTH SIDES, BOTH ENDS WF BEAM PER PLAN
