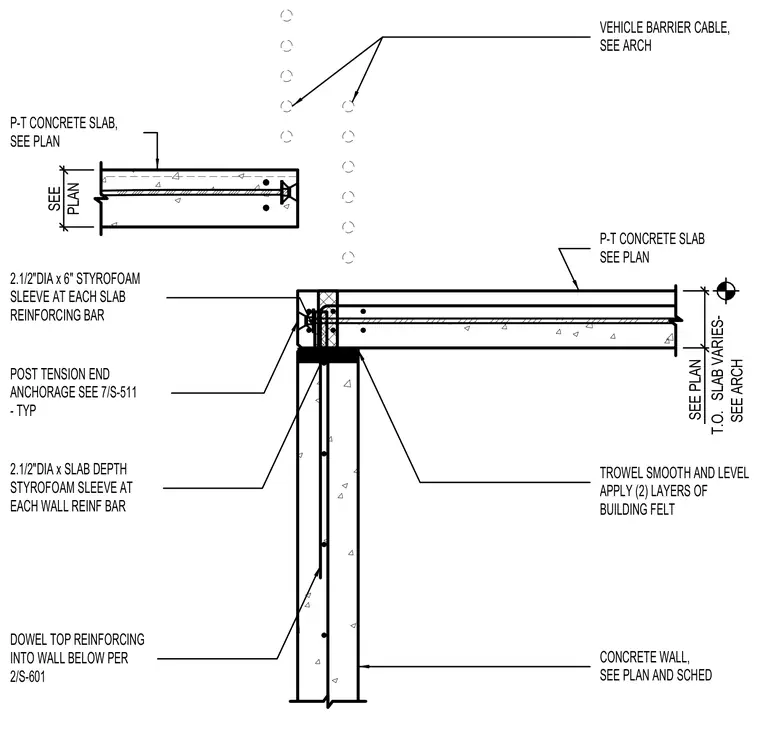

A post-tensioned concrete slab bears on a vertical concrete wall with a two-layer building felt slip joint trowelled smooth and level. Slab reinforcing bars extend into a two-and-a-half-inch diameter by six-inch styrofoam sleeve, and wall reinforcing dowels extend upward per structural notes. Post-tension end anchorages are embedded within the slab edge alongside two-and-a-half-inch diameter by slab-depth styrofoam sleeves at each wall reinforcing bar. Vehicle barrier cables are positioned above the slab edge per architectural plans.
CONCRETE WALL, SEE PLAN AND SCHED POST TENSION END ANCHORAGE SEE 7/S-511 2.1/2"DIA x SLAB DEPTH STYROFOAM SLEEVE AT EACH WALL REINF BAR TROWEL SMOOTH AND LEVEL APPLY (2) LAYERS OF BUILDING FELT 2.1/2"DIA x 6" STYROFOAM SLEEVE AT EACH SLAB REINFORCING BAR DOWEL TOP REINFORCING INTO WALL BELOW PER 2/S-601 P-T CONCRETE SLAB SEE PLAN VEHICLE BARRIER CABLE, SEE ARCH P-T CONCRETE SLAB, SEE PLAN - TYP SEE PLAN SEE PLAN T.O. SLAB VARIES- SEE ARCH
