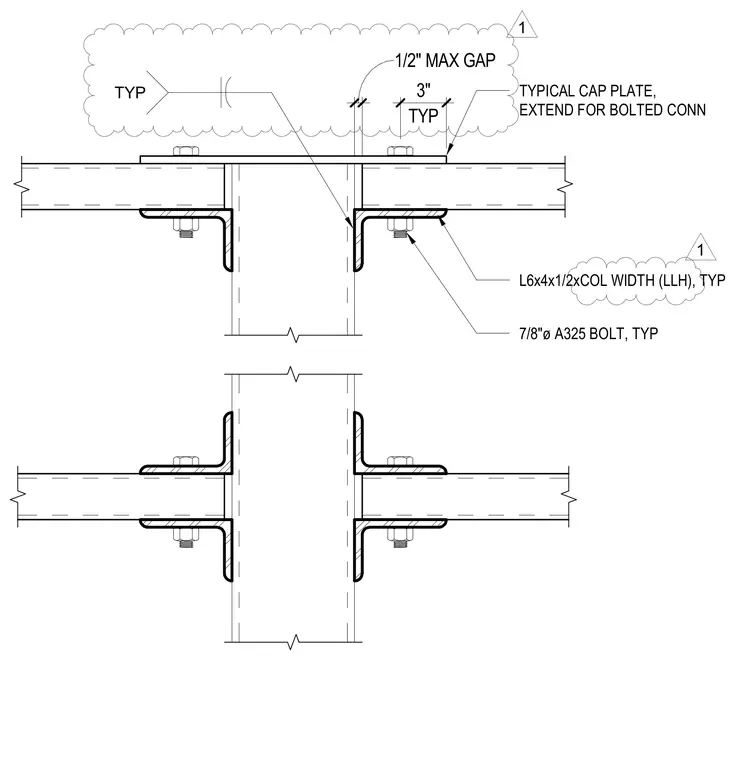

A roof screen girt frames into a column via L6x4x1/2 angles extending for the bolted connection matching the column width, secured with seven-eighths-inch diameter A325 bolts. A typical cap plate spans the top of the column with a one-half-inch maximum gap and a typical three-inch spacing.
TYPICAL CAP PLATE, EXTEND FOR BOLTED CONN L6x4x1/2xCOL WIDTH (LLH), TYP 7/8"ø A325 BOLT, TYP TYP 3" TYP 1/2" MAX GAP 1 1
