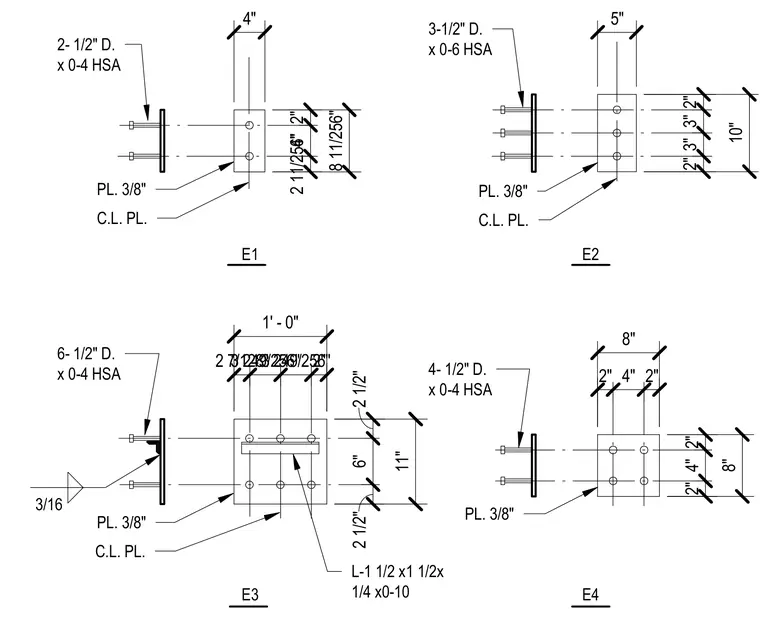

These structural embed plate details illustrate steel plates welded with headed stud anchors in four distinct configurations designated E1 through E4. Each detail shows a three-eighths-inch thick steel plate with centerline markings welded to half-inch diameter headed stud anchors of varying lengths. Detail E3 incorporates an additional one-and-a-half by one-and-a-half by quarter-inch angle welded with a three-sixteenths-inch fillet weld. Dimensions are provided for plate sizes, edge distances, and anchor spacing.
E1 E2 E3 E4 2- 1/2" D. x 0-4 HSA PL. 3/8" C.L. PL. PL. 3/8" C.L. PL. 3-1/2" D. x 0-6 HSA 4- 1/2" D. x 0-4 HSA PL. 3/8" 6- 1/2" D. x 0-4 HSA PL. 3/8" C.L. PL. L-1 1/2 x1 1/2x 1/4 x0-10 4" 8 11/256" 2" 4" 2 11/256" 5" 2" 3" 3" 2" 10" 3/16 2 7/128" 3 249/256" 3 249/256" 2" 1' - 0" 2 1/2" 6" 2 1/2" 11" 2" 4" 2" 8" 2" 4" 2" 8"
