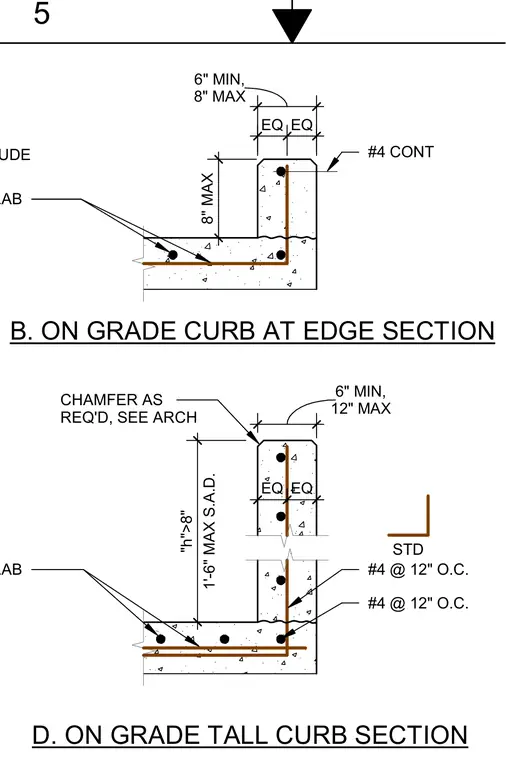

Typical concrete curb sections cast on a slab on grade feature edge curb and tall curb configurations. The standard curb includes continuous number four reinforcing bars and number four bars spaced at twelve inches on center. The slab integrates a roughened surface with a quarter-inch amplitude and includes chamfered top edges as required by architectural specifications. The tall curb accommodates heights greater than eight inches with specific maximum dimensions and vertical bar placements.
EQ EQ B. ON GRADE CURB AT EDGE SECTION D. ON GRADE TALL CURB SECTION TYP SLAB #4 CONT CHAMFER AS REQ'D, SEE ARCH EQ EQ STD #4 @ 12" O.C. #4 @ 12" O.C. TYP SLAB 8" MAX 8" MAX 6" MIN, ROUGHEN TO 1/4" AMPLITUDE 1'-6" MAX S.A.D. "h">8" 12" MAX 6" MIN, 5
