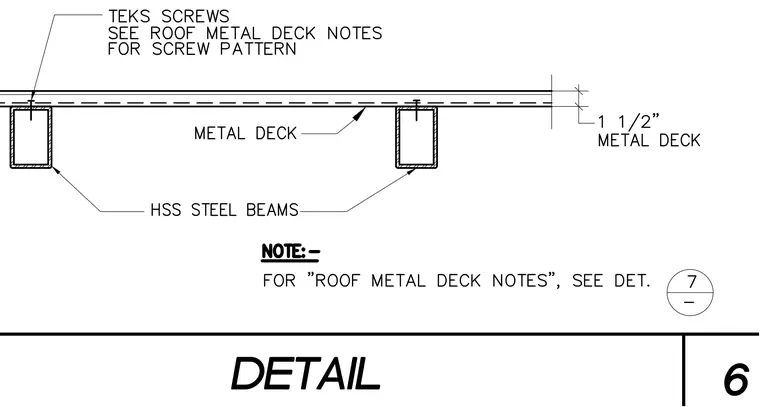

A one-and-a-half-inch metal roof deck bears continuously across hollow structural section steel beams. Self-drilling screws fasten the metal deck to the top flanges of the structural steel framing per the roof metal deck notes. A reference note directs users to detail 7 for specific screw pattern requirements.
