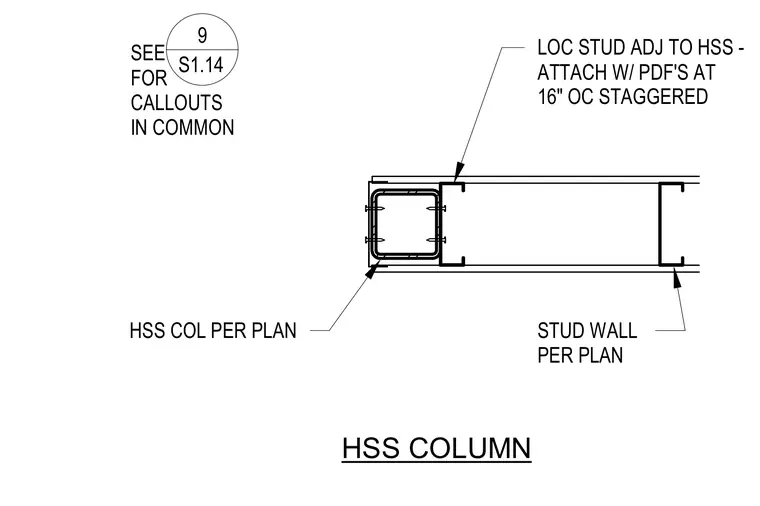

A hollow structural section column per plan aligns with a stud wall per plan. The local stud adjacent to the hollow structural section is attached using powder-actuated fasteners spaced at 16 inches on center staggered.
HSS COLUMN STUD WALL PER PLAN LOC STUD ADJ TO HSS - ATTACH W/ PDF'S AT 16" OC STAGGERED HSS COL PER PLAN SEE FOR CALLOUTS IN COMMON 9 S1.14
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
