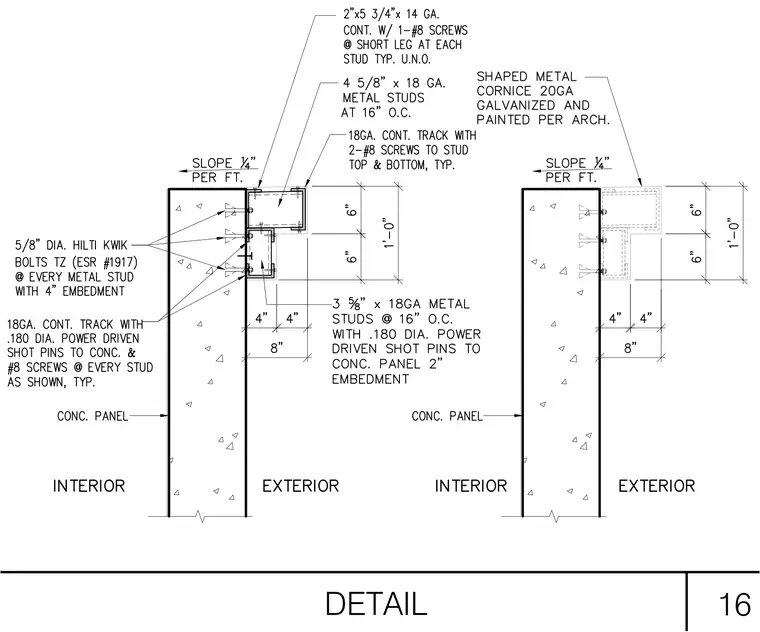

A 2-inch by 5-3/4-inch fourteen gauge continuous metal member with one number eight screw at the short leg of each stud is typical unless noted otherwise, supporting a shaped twenty gauge galvanized and painted metal cornice. The assembly uses four and five-eighths inch eighteen gauge metal studs spaced at sixteen inches on center. An eighteen gauge continuous track connects with two number eight screws to the stud at the top and bottom typically. Three and five-eighths inch eighteen gauge metal studs at sixteen inches on center attach to the concrete panel with one hundred eighty diameter power driven shot pins with two-inch embedment. Five-eighths inch diameter Hilti Kwik Bolts TZ with four-inch embedment secure the framing to the concrete panel. An eighteen gauge continuous track connects with one hundred eighty diameter power driven shot pins to the concrete and number eight screws at every stud as shown.
