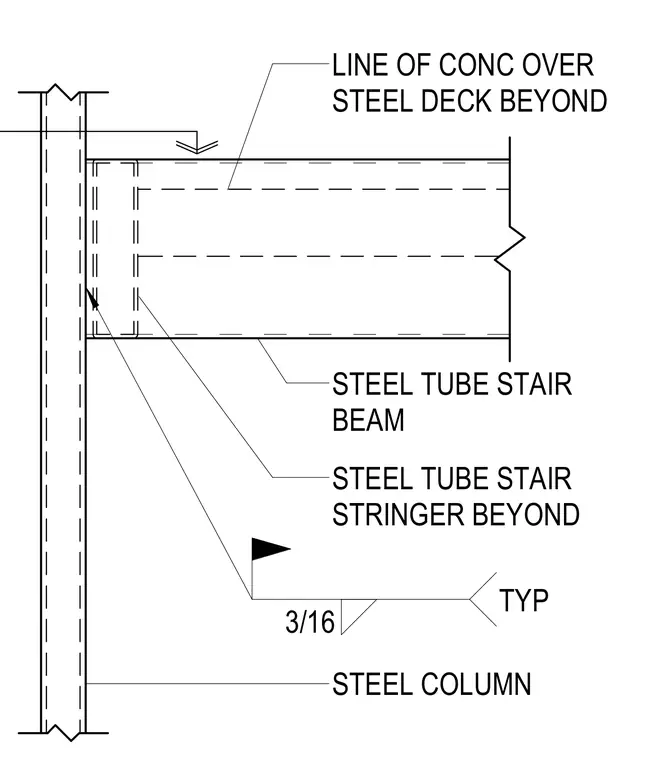

A steel tube stair beam connects to a vertical steel column, positioned adjacent to a concrete slab over steel deck visible beyond. A steel tube stair stringer aligns behind the beam assembly. A three-sixteenths inch typical fillet weld secures the structural members as indicated by standard welding symbols.
STEEL COLUMN STEEL TUBE STAIR BEAM LINE OF CONC OVER STEEL DECK BEYOND STEEL TUBE STAIR STRINGER BEYOND 3/16 TYP
