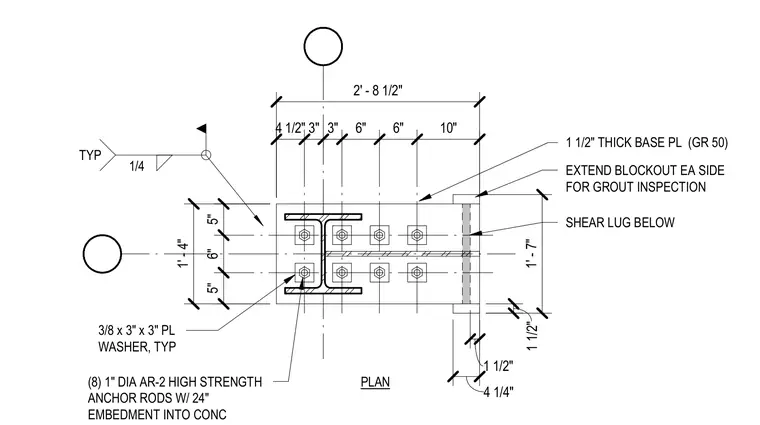

A structural column base connection plan detail featuring an HSS or wide-flange column secured by an 1 1/2" thick Grade 50 base plate resting on a concrete foundation. The assembly is anchored using eight 1" diameter AR-2 high-strength anchor rods with 24" embedment into concrete, each equipped with a 3/8" x 3" x 3" plate washer. A shear lug is positioned below the base plate, and blockouts are extended on each side to allow for grout inspection. Fillet welds of 1/4" size are specified at typical connection points.
1' - 4" 2' - 8 1/2" 4 1/2" 3" 3" 6" 6" 10" 5" 6" 5" PLAN 3/8 x 3" x 3" PL WASHER, TYP 1/4 TYP 1 1/2" 1 1/2" (8) 1" DIA AR-2 HIGH STRENGTH ANCHOR RODS W/ 24" EMBEDMENT INTO CONC 4 1/4" 1' - 7" 1 1/2" THICK BASE PL (GR 50) SHEAR LUG BELOW EXTEND BLOCKOUT EA SIDE FOR GROUT INSPECTION
