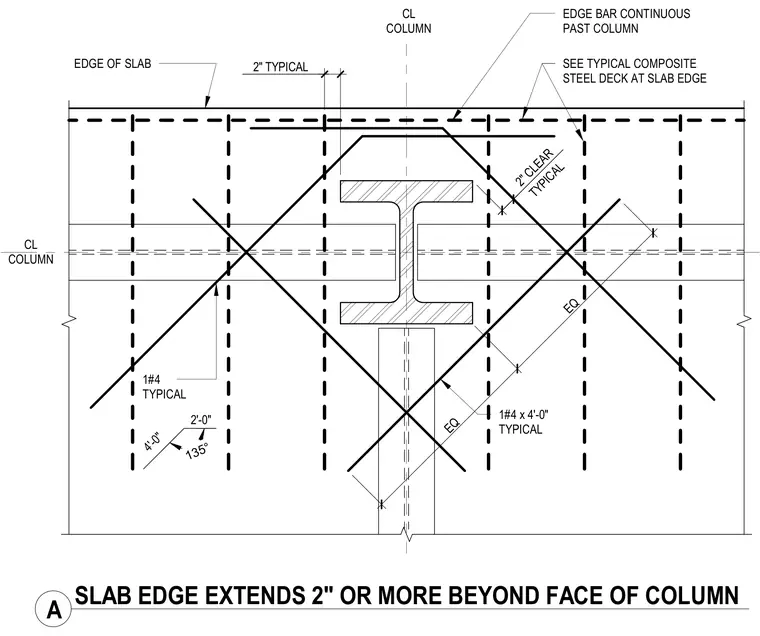

Concrete slab reinforcing includes a number four top bar running continuous past the column edge with a two-inch clear cover. Additional number four bars measuring four feet long are placed symmetrically at one hundred thirty-five degree bends. The composite steel deck extends two inches or more beyond the face of the column.
1#4 TYPICAL 1#4 x 4'-0" TYPICAL SEE TYPICAL COMPOSITE STEEL DECK AT SLAB EDGE EQ EQ 2'-0" 4'-0" 135° 2" TYPICAL TYPICAL 2" CLEAR CL COLUMN EDGE BAR CONTINUOUS PAST COLUMN EDGE OF SLAB CL COLUMN A SLAB EDGE EXTENDS 2" OR MORE BEYOND FACE OF COLUMN
