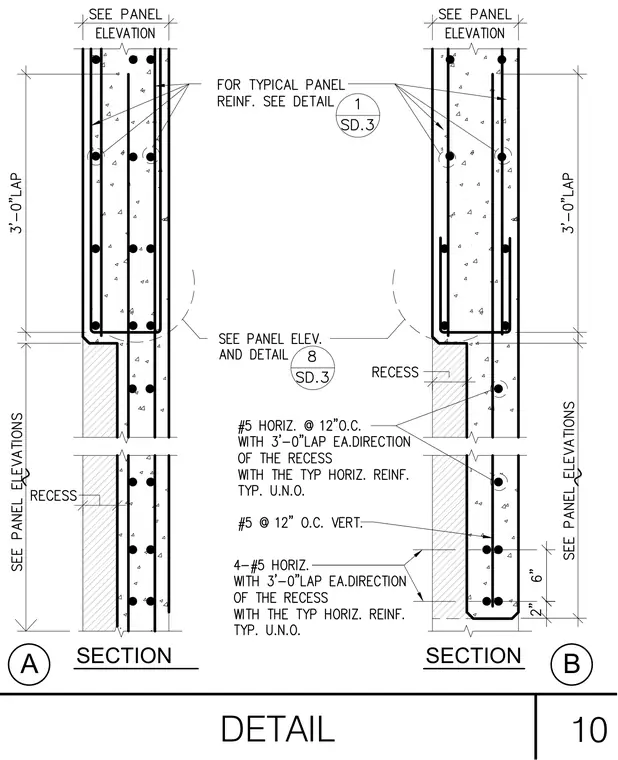

Precast concrete wall panels feature continuous vertical reinforcement and horizontal reinforcing bars with three-foot laps. Section A and Section B show panel recesses and connection regions with specified lap lengths and horizontal bar spacings. Reference callouts direct the builder to panel elevations and typical reinforcement details on other sheets.
