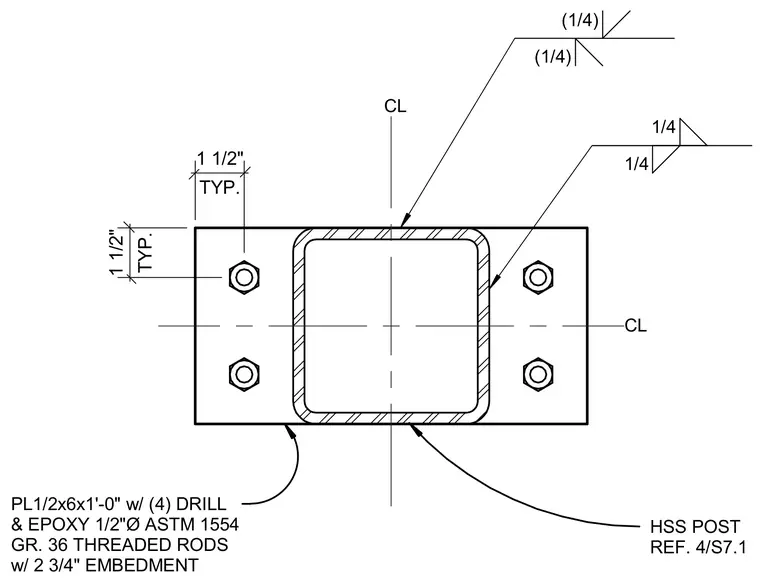

A 1-1/2 inch hollow structural section post connects to a 1/2 inch by 6 inch by 1 foot-0 inch steel base plate using 1/4 inch fillet welds around the perimeter. Four 1/2 inch diameter ASTM F1554 Grade 36 threaded rods secure the base plate into hardened concrete with a 2-3/4 inch embedment depth using drilled holes and epoxy adhesive. The anchor rods are positioned at 1-1/2 inch typical edge distances from the plate corners.
TYP. 1 1/2" HSS POST REF. 4/S7.1 PL1/2x6x1'-0" w/ (4) DRILL & EPOXY 1/2"Ø ASTM 1554 GR. 36 THREADED RODS w/ 2 3/4" EMBEDMENT 1/4 1/4 (1/4) (1/4) CL CL TYP. 1 1/2"
