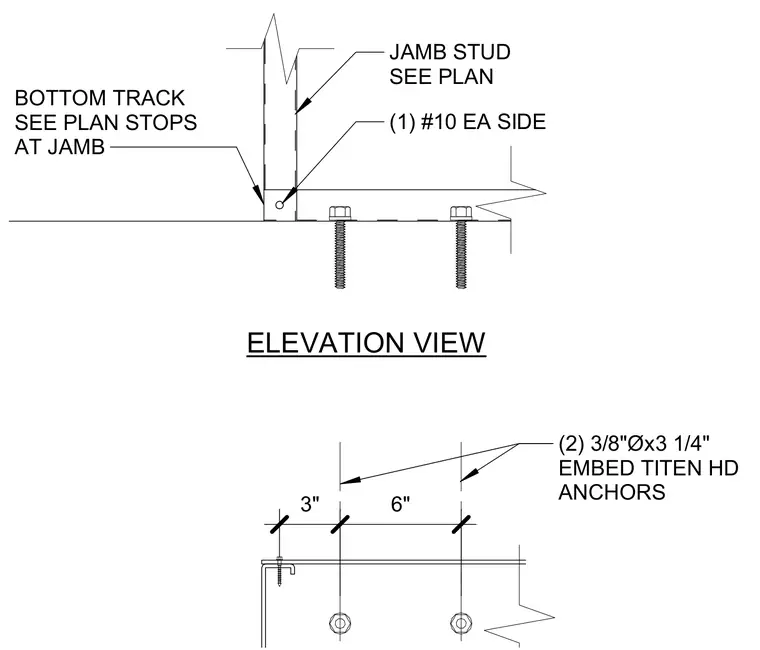

A vertical jamb stud sized per plan bears against the concrete slab with the bottom track stopping at the jamb. Two three-eighths-inch diameter by three-and-one-quarter-inch embedment Titen HD anchors secure the assembly. One number ten fastener attaches to each side of the bottom track.
3" 6" (2) 3/8"Øx3 1/4" EMBED TITEN HD ANCHORS JAMB STUD SEE PLAN (1) #10 EA SIDE BOTTOM TRACK SEE PLAN STOPS AT JAMB ELEVATION VIEW
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
