Structural · S-B7AYQ

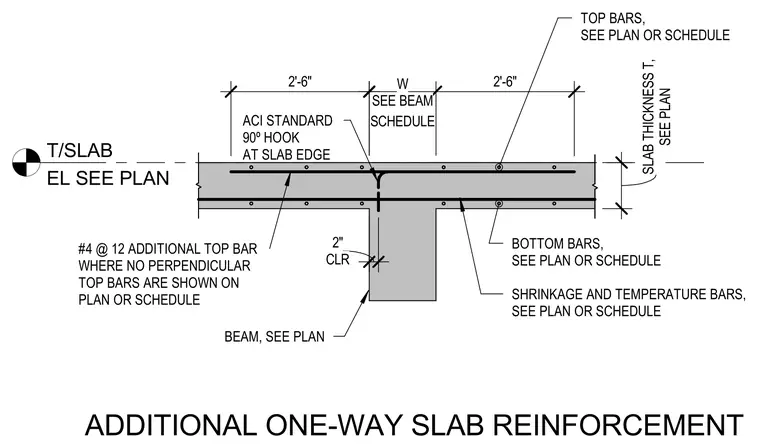

Additional One-Way Slab Reinforcement

Elements

Connections

About this detail

A reinforced concrete one-way slab bears on a monolithic concrete beam with dimensions and reinforcing specified per structural plans. Additional top bars (#4 at twelve inches on center) are placed where no perpendicular top bars appear on the plan or schedule, terminating with an American Concrete Institute standard ninety-degree hook at the slab edge. Bottom bars, shrinkage and temperature bars, and slab thickness are sized according to the structural schedule. Two inches of concrete clearance is maintained at the beam bottom.
