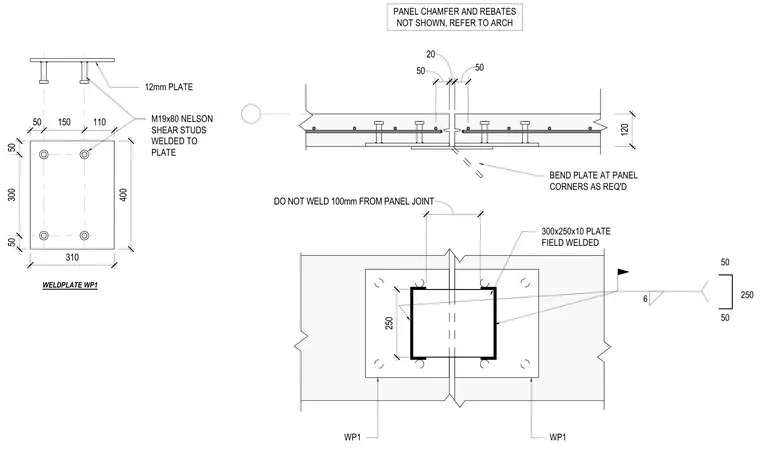

This structural detail shows weldplate WP1 consisting of a 12mm steel plate anchored with M19x80 Nelson shear studs welded to the plate. A 300x250x10 plate is field welded with a 6 fillet weld to the embedded plates across the panel joint. Field welding is restricted from occurring within 100mm of the panel joint, and the plate is bent at panel corners as required. Panel chamfers and rebates are excluded and must be referenced from architectural drawings.
300x250x10 PLATE FIELD WELDED PANEL CHAMFER AND REBATES NOT SHOWN, REFER TO ARCH M19x80 NELSON SHEAR STUDS WELDED TO PLATE 12mm PLATE 120 WELDPLATE WP1 50 150 110 310 50 300 50 400 50 50 20 250 6 WP1 WP1 50 50 250 DO NOT WELD 100mm FROM PANEL JOINT BEND PLATE AT PANEL CORNERS AS REQ'D
