Concrete steps on grade are reinforced with two number five bottom continuous bars and two number five top continuous bars. Transverse reinforcing includes number four bars at eighteen inches on center and number four extra bars spaced at eighteen inches. The slab thickness is six inches maximum.

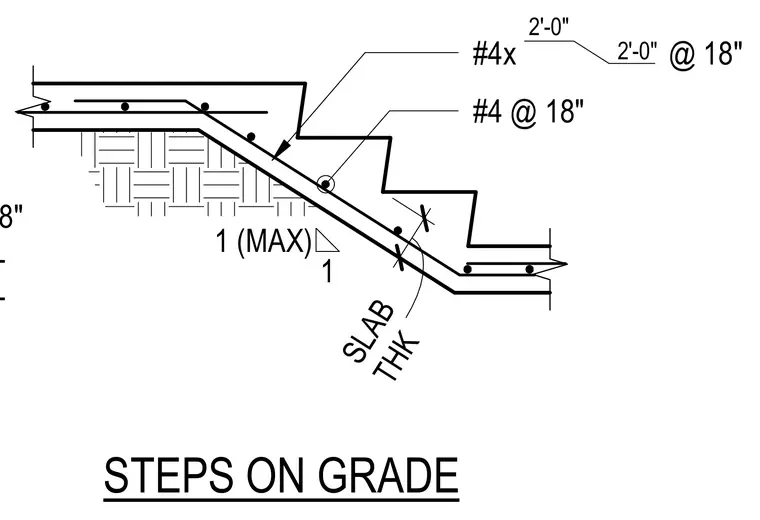

(2) #5 BOT CONT (2) #5 TOP CONT #3x @ 18" STEPS ON GRADE 1 1 #4 @ 18" #4x @ 18" 2'-0" 2'-0" 1 (MAX) SLAB THK 6 "
