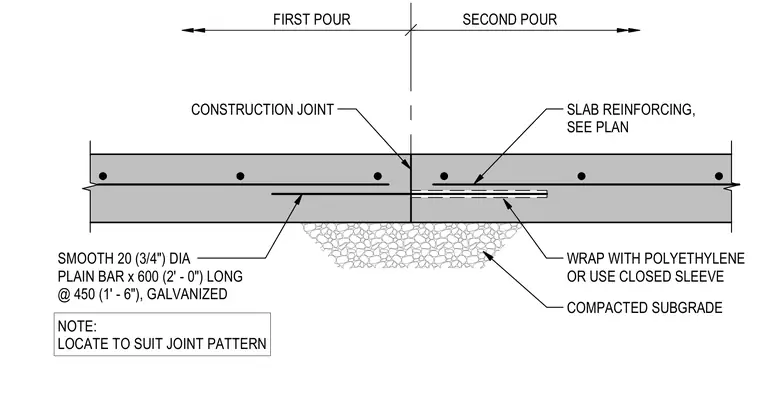

A construction joint occurs between a first and second concrete pour resting on a compacted subgrade. Smooth 3/4-inch diameter galvanized plain bars, 2 feet long, are spaced at 1 foot 6 inches on center across the joint. The dowels are wrapped with polyethylene or fitted with a closed sleeve to allow for horizontal movement. Slab reinforcing is sized per plan, and joint locations are coordinated to suit the joint pattern.
FIRST POUR SECOND POUR WRAP WITH POLYETHYLENE OR USE CLOSED SLEEVE CONSTRUCTION JOINT SMOOTH 20 (3/4") DIA PLAIN BAR x 600 (2' - 0") LONG @ 450 (1' - 6"), GALVANIZED NOTE: LOCATE TO SUIT JOINT PATTERN SLAB REINFORCING, SEE PLAN COMPACTED SUBGRADE
