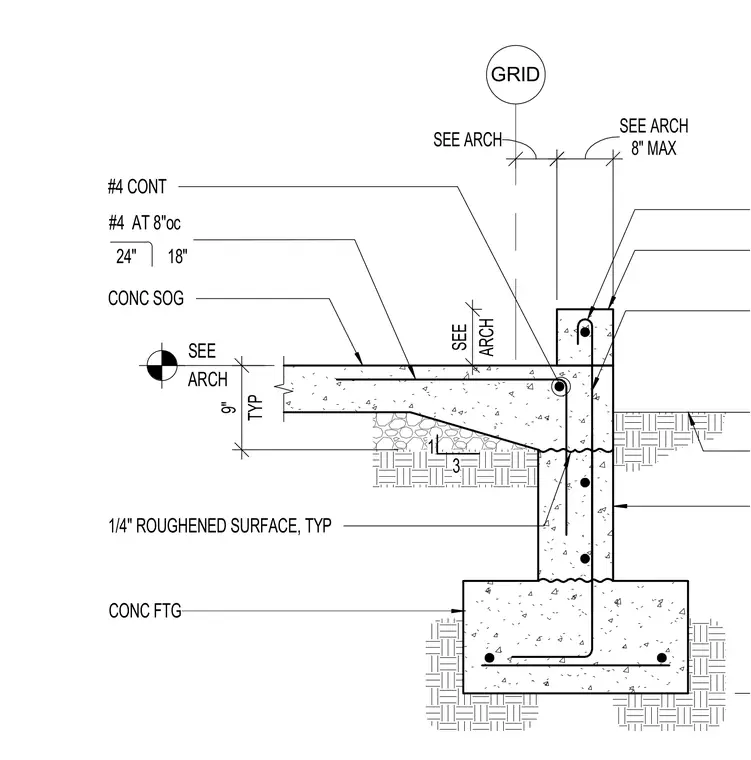

A nine-inch concrete slab on grade bears on a thickened edge supported by a continuous concrete footing. Reinforcement consists of number four continuous bars and number four bars spaced at eight inches on center. The contact surface features a one-quarter-inch roughened surface finish. Dimensions and alignments relative to the architectural grid are coordinated with architectural drawings.
TYP 9" CONC SOG #4 CONT 1 3 SEE ARCH GRID SEE ARCH ARCH SEE 8" MAX SEE ARCH CONC FTG 24" 18" #4 AT 8"oc 1/4" ROUGHENED SURFACE, TYP
