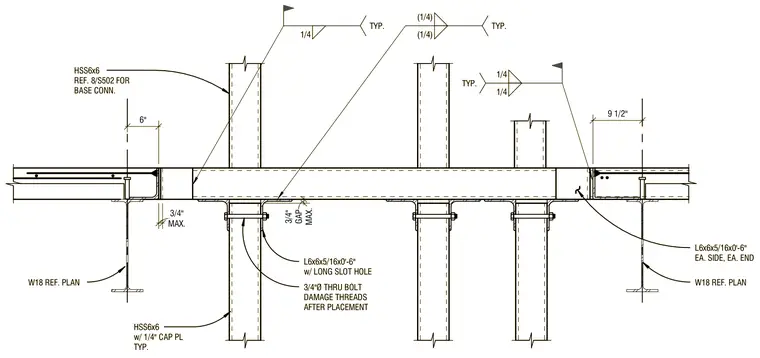

This structural assembly consists of hollow structural section columns intersecting wide-flange beams with typical quarter-inch fillet welds. The HSS6x6 columns feature quarter-inch cap plates typically and are tied into the W18 framing using L6x6x5/16 angle clips measuring zero feet six inches on each side and end. Three-quarter-inch diameter through bolts with damaged threads after placement secure the connection through long slotted holes, maintaining a maximum three-quarter-inch gap. Base connections are referenced to sheet S502.
9 1/2" 6" MAX. 3/4" HSS6x6 REF. 8/S502 FOR BASE CONN. W18 REF. PLAN HSS6x6 w/ 1/4" CAP PL TYP. 3/4"Ø THRU BOLT DAMAGE THREADS AFTER PLACEMENT L6x6x5/16x0'-6" w/ LONG SLOT HOLE MAX. 3/4" GAP L6x6x5/16x0'-6" EA. SIDE, EA. END W18 REF. PLAN 1/4 TYP. (1/4) (1/4) TYP. 1/4 1/4 TYP. 9 1/2" 6" MAX. 3/4" HSS6x6 REF. 8/S502 FOR BASE CONN. W18 REF. PLAN HSS6x6 w/ 1/4" CAP PL TYP. 3/4"Ø THRU BOLT DAMAGE THREADS AFTER PLACEMENT L6x6x5/16x0'-6" w/ LONG SLOT HOLE MAX. 3/4" GAP L6x6x5/16x0'-6" EA. SIDE, EA. END W18 REF. PLAN 1/4 TYP. (1/4) (1/4) TYP. 1/4 1/4 TYP.
