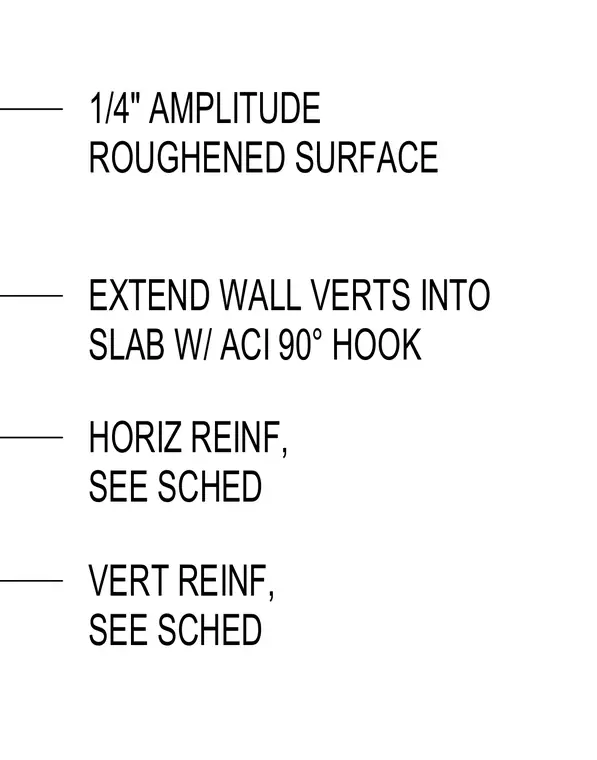

The concrete slab on grade connects to the top of the wall with vertical reinforcement extended into the slab featuring an American Concrete Institute ninety-degree hook. Horizontal and vertical reinforcement are sized per schedule. The bearing interface has a one-quarter-inch amplitude roughened surface.
EXTEND WALL VERTS INTO SLAB W/ ACI 90° HOOK 1/4" AMPLITUDE ROUGHENED SURFACE VERT REINF, SEE SCHED HORIZ REINF, SEE SCHED
