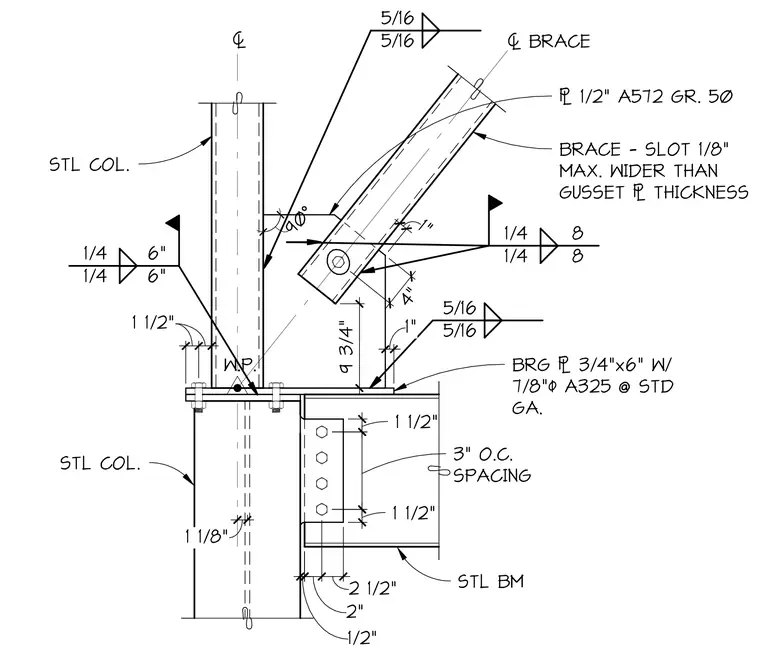

A structural steel column connects to a lower steel column and a perpendicular steel beam through a 3/4 inch by 6 inch bearing plate fastened with 7/8 inch diameter A325 bolts at standard gauge. A diagonal brace member connects to the assembly via a 1/2 inch thick ASTM A572 Grade 50 gusset plate, with the brace slotted a maximum of 1/8 inch wider than the gusset plate thickness. Fillet welds of 5/16 inch and 1/4 inch sizes secure the gusset plate to the steel column and bearing plate as specified by the weld symbols. The steel beam attaches to the column flange using a bolted connection with 3 inch on-center spacing and 1 1/2 inch edge distances.
W.P. 1 1/2" 1 1/2" 1/4 6" 1/4 6" BRG ' 3/4"x6" W/ 7/8". A325 @ STD GA. BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS ' 1/2" A572 GR. 50 90° 1" 4" 5/16 5/16 1/4 8 1/4 8 9 3/4" 1" STL COL. * BRACE STL BM STL COL. 2" 2 1/2" 1/2" 1 1/2" 1 1/2" 3" O.C. SPACING * 5/16 5/16 1 1/8"
