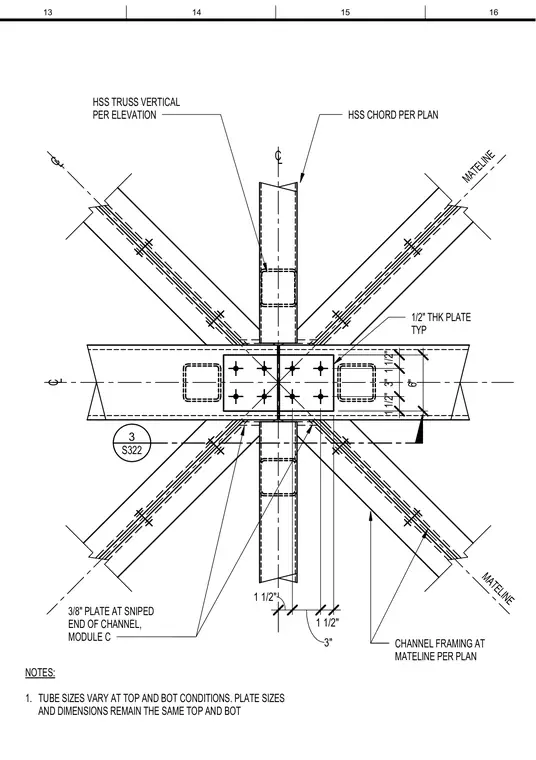

A center module connection at the top and bottom conditions of an HSS truss. Hollow structural section vertical members and chords intersect with channel framing aligned at the mateline. A one-half-inch thick plate is used typically at the connection joints, accompanied by a three-eighths-inch plate at the sniped end of the channel in module C. Tube sizes vary between top and bottom conditions, while plate sizes and connection dimensions remain identical. Centerlines and dimensional increments of one and one-half inches and three inches define the layout.
MATELINE MATELINE C L C L C L 3 S322 1 1/2" 3" 1 1/2" 6" 1 1/2" 3" 1 1/2" 1/2" THK PLATE TYP 3/8" PLATE AT SNIPED END OF CHANNEL, MODULE C NOTES: 1. TUBE SIZES VARY AT TOP AND BOT CONDITIONS. PLATE SIZES AND DIMENSIONS REMAIN THE SAME TOP AND BOT HSS TRUSS VERTICAL PER ELEVATION HSS CHORD PER PLAN CHANNEL FRAMING AT MATELINE PER PLAN 13 14 15 16
