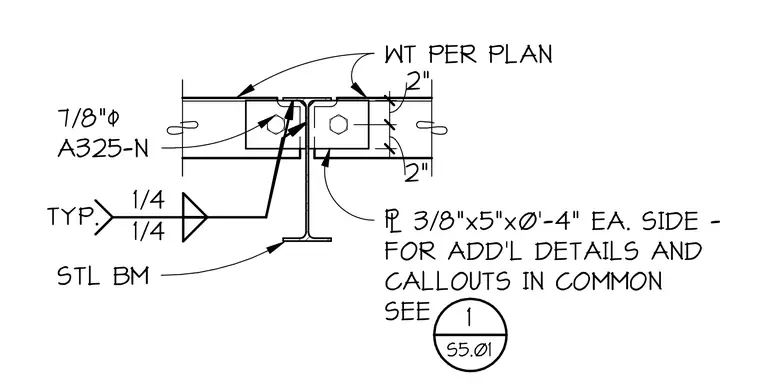

A structural steel beam connects to a WT shape sized per plan, utilizing three-eighths-inch by five-inch by four-foot plates on each side. The connection is secured with seven-eighths-inch diameter A325-N bolts. Typical one-quarter-inch fillet welds attach the components.
2" 2" WT PER PLAN 3/8"x5"x0' -4" EA. SIDE - FOR ADD'L DETAILS AND CALLOUTS IN COMMON SEE 1 S5.01 7/8" A325-N STL BM 1/4 1/4 TYP.
