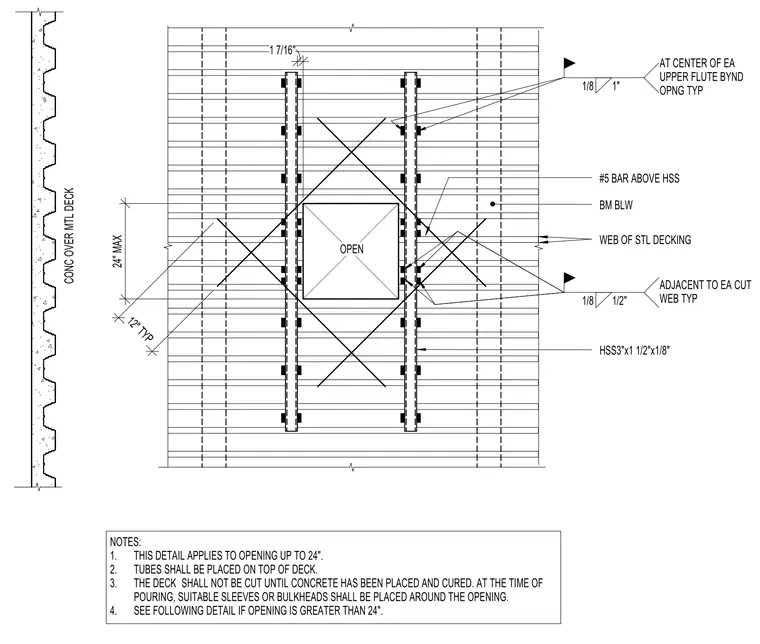

A floor slab opening up to twenty-four inches wide is framed with hollow structural section tubes measuring three inches by one and a half inches by one-eighth inch placed on top of the steel decking. A number five reinforcing bar is positioned above each hollow structural section member. The steel deck web is cut adjacent to each tube with a one-eighth inch weld by one-half inch typically, and a one-eighth inch weld by one inch is applied at the center of each upper flute beyond the opening typically. Concrete is poured over the metal deck, and the deck remains uncut until the concrete has been placed and cured with suitable sleeves or bulkheads in place.
HSS3"x1 1/2"x1/8" #5 BAR ABOVE HSS BM BLW WEB OF STL DECKING NOTES: 1. THIS DETAIL APPLIES TO OPENING UP TO 24". 2. TUBES SHALL BE PLACED ON TOP OF DECK. 3. THE DECK SHALL NOT BE CUT UNTIL CONCRETE HAS BEEN PLACED AND CURED. AT THE TIME OF POURING, SUITABLE SLEEVES OR BULKHEADS SHALL BE PLACED AROUND THE OPENING. 4. SEE FOLLOWING DETAIL IF OPENING IS GREATER THAN 24". AT CENTER OF EA UPPER FLUTE BYND OPNG TYP 1/8 1" 24" MAX 12" TYP ADJACENT TO EA CUT WEB TYP 1/8 1/2" OPEN CONC OVER MTL DECK 1 7/16"
