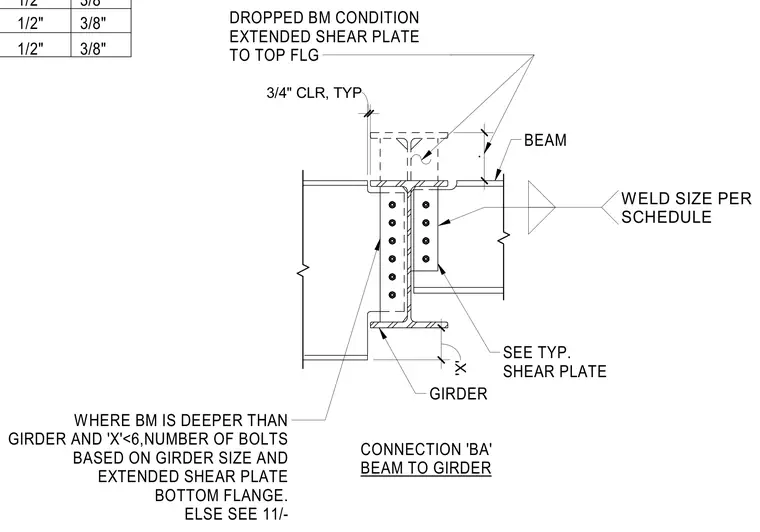

This connection details a dropped steel beam framing into a girder web using an extended shear plate welded to the supporting member and bolted to the supported beam web. A three-quarter-inch clearance is maintained at the top flange condition. Where the beam is deeper than the girder and the dimension X is less than six inches, the number of bolts is based on the girder size and the extended shear plate at the bottom flange. Weld sizes are specified per schedule.
BEAM SEE TYP. SHEAR PLATE GIRDER WHERE BM IS DEEPER THAN GIRDER AND 'X'<6,NUMBER OF BOLTS BASED ON GIRDER SIZE AND EXTENDED SHEAR PLATE BOTTOM FLANGE. ELSE SEE 11/- 3/4" CLR, TYP DROPPED BM CONDITION EXTENDED SHEAR PLATE TO TOP FLG CONNECTION 'BA' BEAM TO GIRDER . WELD SIZE PER SCHEDULE 'X' 1/2" 3/8" 1/2" 3/8" 1/2" 3/8"
