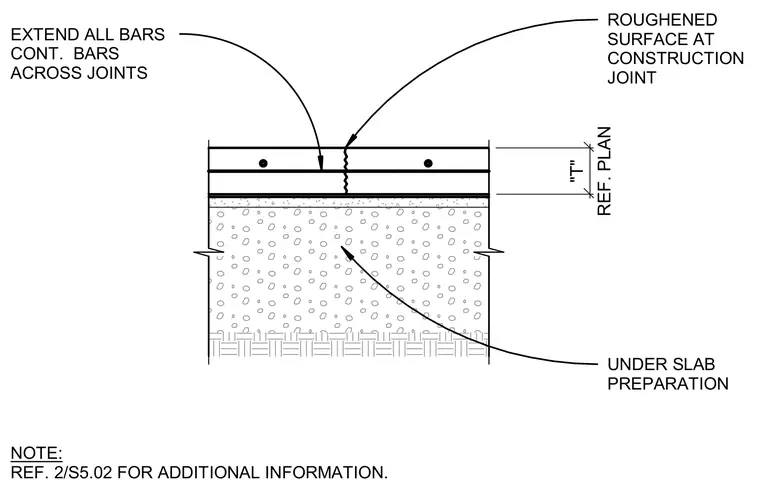

This construction joint detail features a roughened concrete surface at the joint interface with continuous reinforcing bars extended across the joint. The slab thickness is referenced to the plan, and the assembly sits above the under slab preparation layer.
REF. PLAN "T" UNDER SLAB PREPARATION EXTEND ALL BARS CONT. BARS ACROSS JOINTS NOTE: REF. 2/S5.02 FOR ADDITIONAL INFORMATION. ROUGHENED SURFACE AT CONSTRUCTION JOINT
