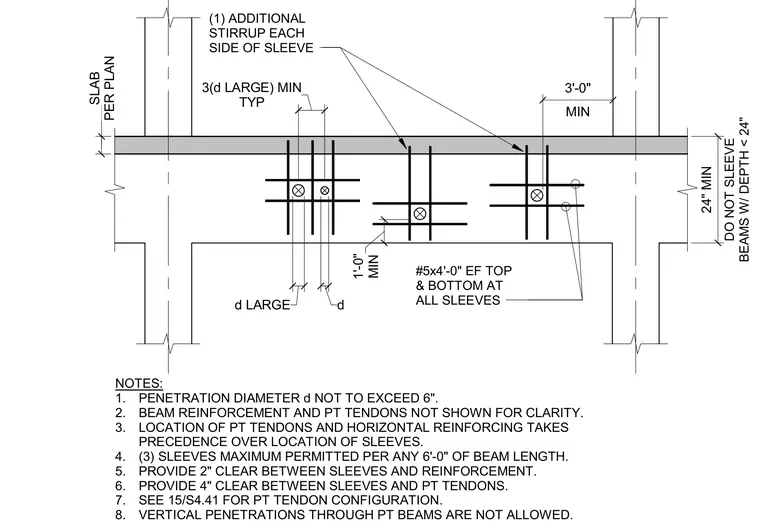

Post-tensioned concrete beams with a minimum depth of 24 inches accommodate penetration diameters restricted to a maximum of six inches, with three sleeves permitted per any six-foot beam length. Additional stirrups and number five bars spanning four feet each face are provided at the top and bottom of all sleeves. A minimum spacing of three times the larger diameter is required between sleeves, maintaining two inches of clear distance to reinforcement and four inches to post-tensioned tendons. Vertical penetrations through post-tensioned beams are strictly prohibited, and tendon location always takes precedence over sleeve placement.
TYP 3(d LARGE) MIN DO NOT SLEEVE BEAMS W/ DEPTH < 24" (1) ADDITIONAL STIRRUP EACH SIDE OF SLEEVE #5x4'-0" EF TOP & BOTTOM AT ALL SLEEVES NOTES: 1. PENETRATION DIAMETER d NOT TO EXCEED 6". 2. BEAM REINFORCEMENT AND PT TENDONS NOT SHOWN FOR CLARITY. 3. LOCATION OF PT TENDONS AND HORIZONTAL REINFORCING TAKES PRECEDENCE OVER LOCATION OF SLEEVES. 4. (3) SLEEVES MAXIMUM PERMITTED PER ANY 6'-0" OF BEAM LENGTH. 5. PROVIDE 2" CLEAR BETWEEN SLEEVES AND REINFORCEMENT. 6. PROVIDE 4" CLEAR BETWEEN SLEEVES AND PT TENDONS. 7. SEE 15/S4.05 FOR PT TENDON CONFIGURATION. 8. VERTICAL PENETRATIONS THROUGH PT BEAMS ARE NOT ALLOWED. d LARGE d MIN 1'-0" PER PLAN SLAB MIN 3'-0" 24" MIN 15/S4.41
