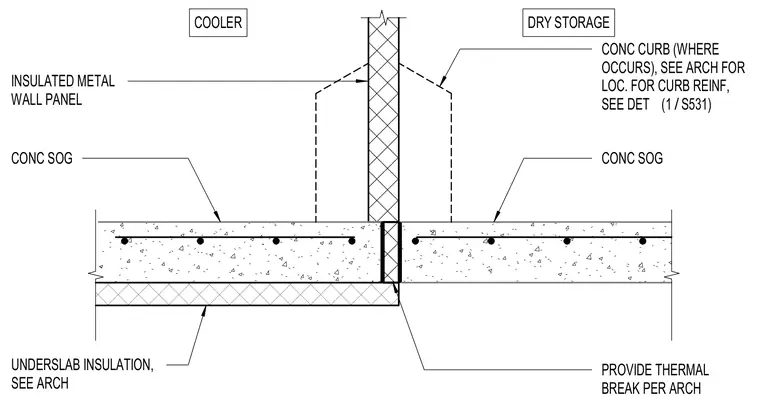

This structural detail shows a concrete slab on grade transition between a cooler and a dry storage area with an insulated metal wall panel dividing the spaces. A concrete curb is provided where required per architectural drawings, with reinforcing detailed on sheet S531. Underslab insulation is installed beneath the concrete slab on grade, and a thermal break is provided per architectural specifications.
INSULATED METAL WALL PANEL CONC SOG CONC SOG CONC CURB (WHERE OCCURS), SEE ARCH FOR LOC. FOR CURB REINF, SEE DET / (1 S531) COOLER DRY STORAGE PROVIDE THERMAL BREAK PER ARCH UNDERSLAB INSULATION, SEE ARCH
