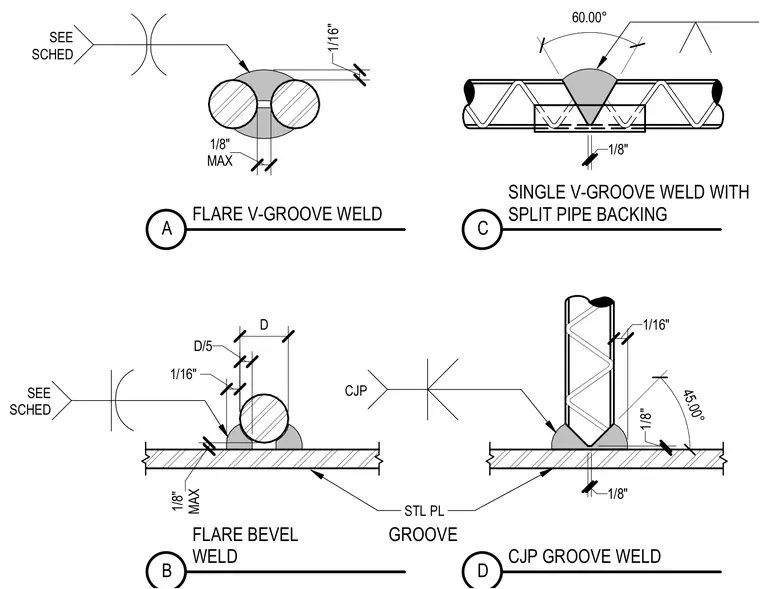

Detail A features a flare v-groove weld joining two parallel reinforcing bars with specified root openings up to one-eighth inch maximum and a one-sixteenth inch offset per schedule. Detail B connects a reinforcing bar to a steel plate via a flare bevel groove weld with specific dimensioning variables D and D over five, maintaining a one-eighth inch maximum root opening. Detail C incorporates a single v-groove weld with a split pipe backing beneath the splice, configured at a sixty-degree included angle and a one-eighth inch root opening. Detail D fastens a perpendicular reinforcing bar to a steel plate utilizing a complete joint penetration groove weld with a forty-five-degree bevel angle and one-eighth inch root spacing.
1/16" MAX 1/8" SEE SCHED 1/8" MAX 1/8" 1/16" D/5 D SEE SCHED STL PL CJP 45.00° 1/8" 1/8" 1/16" FLARE V-GROOVE WELD A SINGLE V-GROOVE WELD WITH SPLIT PIPE BACKING C CJP GROOVE WELD D FLARE BEVEL GROOVE WELD B 60.00°
