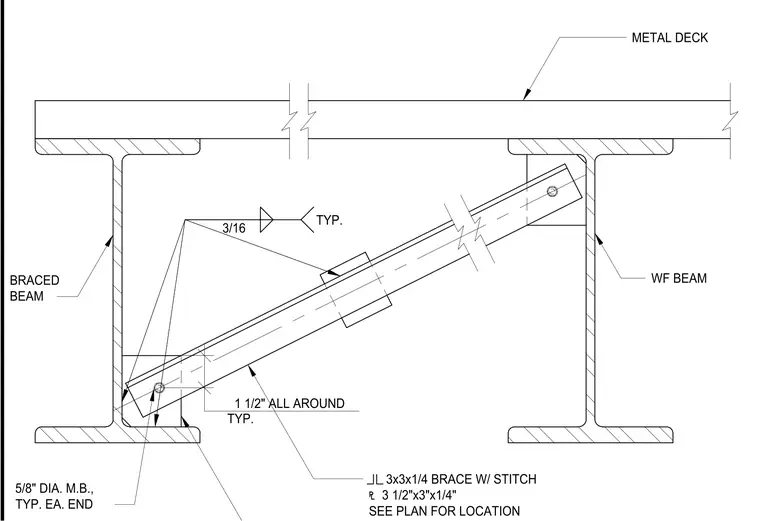

This assembly features a 3x3x1/4 inch angle brace connected to the bottom flanges of two wide-flange beams. The brace is secured at each end using a 5/8 inch diameter machine bolt through a 3 1/2x3x1/4 inch plate. A 3/16 inch fillet weld is applied all around the connection plates, with a 1 1/2 inch stitch weld specified for the brace. The brace is positioned beneath a metal deck, with specific locations determined by the structural framing plan.
