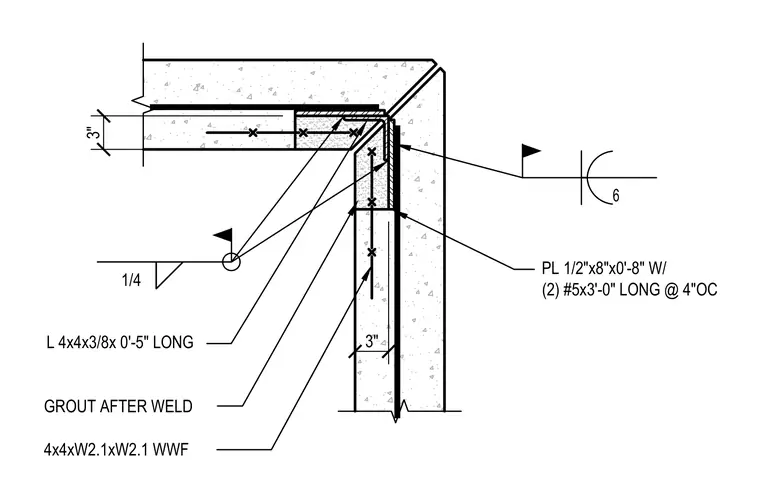

Precast concrete wall panels intersect at a corner utilizing an embedded 4x4x3/8-inch steel angle measuring zero feet five inches long. A half-inch by eight-inch by zero-foot eight-inch steel plate is anchored with two number five reinforcing bars three feet long spaced at four inches on center. A quarter-inch fillet weld secures the assembly per structural notes. Voids are filled with grout after welding is completed. Welded wire fabric of size 4x4-W2.1xW2.1 reinforces the concrete panels.
3" 3" 1/4 L 4x4x3/8x 0'-5" LONG 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 6 PL 1/2"x8"x0'-8" W/ (2) #5x3'-0" LONG @ 4"OC
