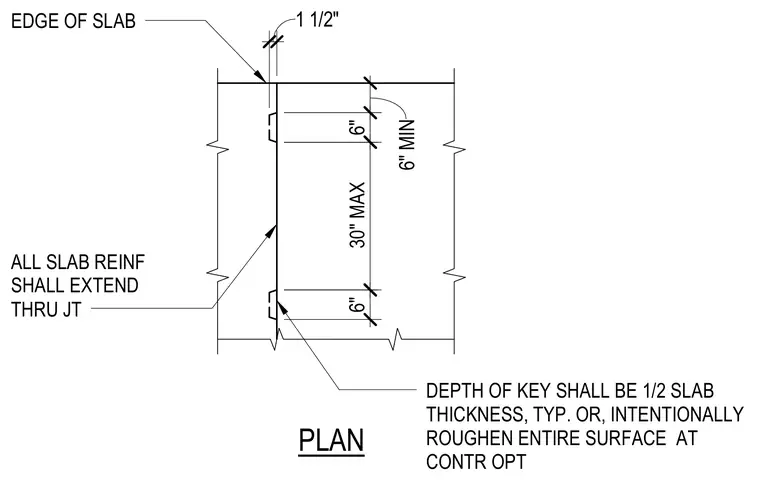

A concrete slab construction joint features a keyway depth equal to half the slab thickness, typically spaced with six-inch minimum dimensions and thirty-inch maximum intervals. All slab reinforcement must extend continuously through the joint. Alternatively, the entire surface may be intentionally roughened at the contractor's option.
6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT PLAN 1 1/2" 30" MAX
