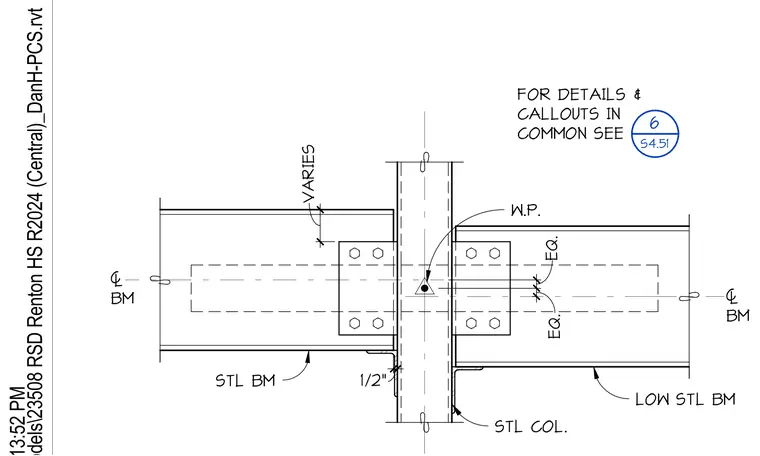

Steel beams frame into opposite sides of a steel column using bolted connections with matching shear tabs. The connection features a working point centered on the column axis with equal spacing dimensions above and below the beam centerline. A lower steel beam connects with a specified one-half inch clearance gap at the column flange. Additional details and common callouts are referenced to sheet S4.51.
EQ. EQ. 1/2" VARIES + BM + BM W.P. STL BM STL COL. LOW STL BM FOR DETAILS & CALLOUTS IN COMMON SEE 6 S4.51
