A ten-inch ledger and truss seat assembly transfers loads through welded headed shear studs. Two three-quarter-inch diameter welded headed studs are spaced at twenty-four inches on center maximum between joists. Six three-quarter-inch diameter welded headed studs are provided at each truss connection.

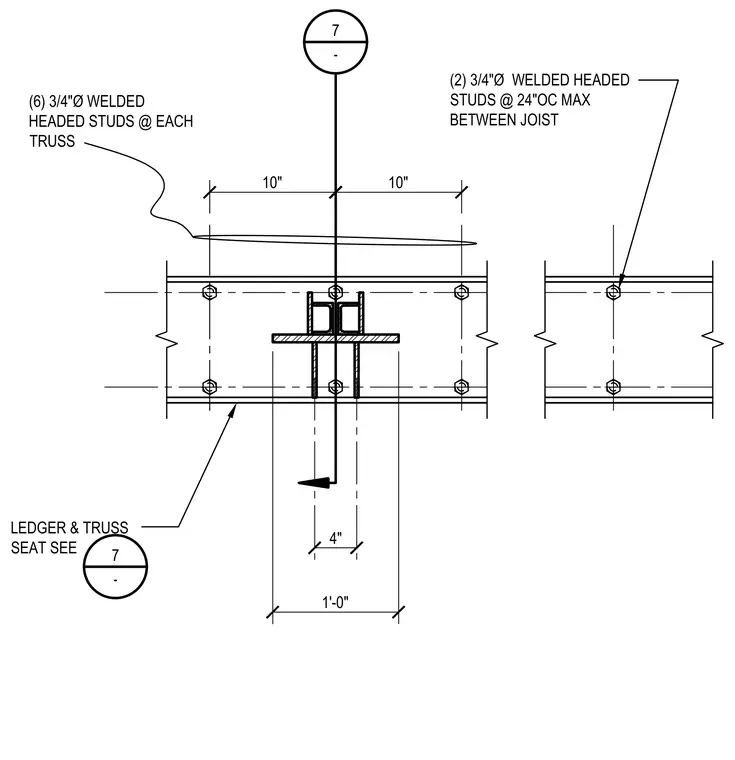

10" LEDGER & TRUSS SEAT SEE (2) 3/4"Ø WELDED HEADED STUDS @ 24"OC MAX BETWEEN JOIST 10" (6) 3/4"Ø WELDED HEADED STUDS @ EACH TRUSS 1'-0" 7 - 4" 7 -
