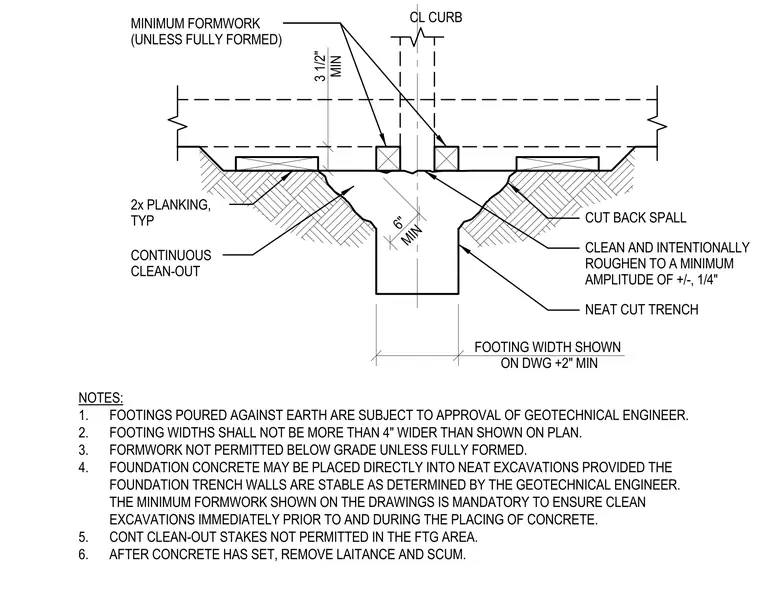

An unformed spread footing is poured directly against earth in a neat excavation, subject to the approval of the geotechnical engineer. The footing features a neat cut trench with a minimum width defined as the width shown on the drawing plus two inches minimum. Two-inch planking is specified typically alongside continuous clean-outs, with minimum formwork requirements established unless fully formed. The concrete surface requires cleaning and intentional roughening to a minimum amplitude of plus or minus one-quarter inch after setting. Additional notes restrict footing widths to no more than four inches wider than shown on the plan and prohibit continuous clean-out stakes in the footing area.
6" MIN 3 1/2" MIN FOOTING WIDTH SHOWN ON DWG +2" MIN NOTES: 1. FOOTINGS POURED AGAINST EARTH ARE SUBJECT TO APPROVAL OF GEOTECHNICAL ENGINEER. 2. FOOTING WIDTHS SHALL NOT BE MORE THAN 4" WIDER THAN SHOWN ON PLAN. 3. FORMWORK NOT PERMITTED BELOW GRADE UNLESS FULLY FORMED. 4. FOUNDATION CONCRETE MAY BE PLACED DIRECTLY INTO NEAT EXCAVATIONS PROVIDED THE FOUNDATION TRENCH WALLS ARE STABLE AS DETERMINED BY THE GEOTECHNICAL ENGINEER. THE MINIMUM FORMWORK SHOWN ON THE DRAWINGS IS MANDATORY TO ENSURE CLEAN EXCAVATIONS IMMEDIATELY PRIOR TO AND DURING THE PLACING OF CONCRETE. 5. CONT CLEAN-OUT STAKES NOT PERMITTED IN THE FTG AREA. 6. AFTER CONCRETE HAS SET, REMOVE LAITANCE AND SCUM. CLEAN AND INTENTIONALLY ROUGHEN TO A MINIMUM AMPLITUDE OF +/-, 1/4" CUT BACK SPALL NEAT CUT TRENCH CL CURB MINIMUM FORMWORK (UNLESS FULLY FORMED) CONTINUOUS CLEAN-OUT 2x PLANKING, TYP
