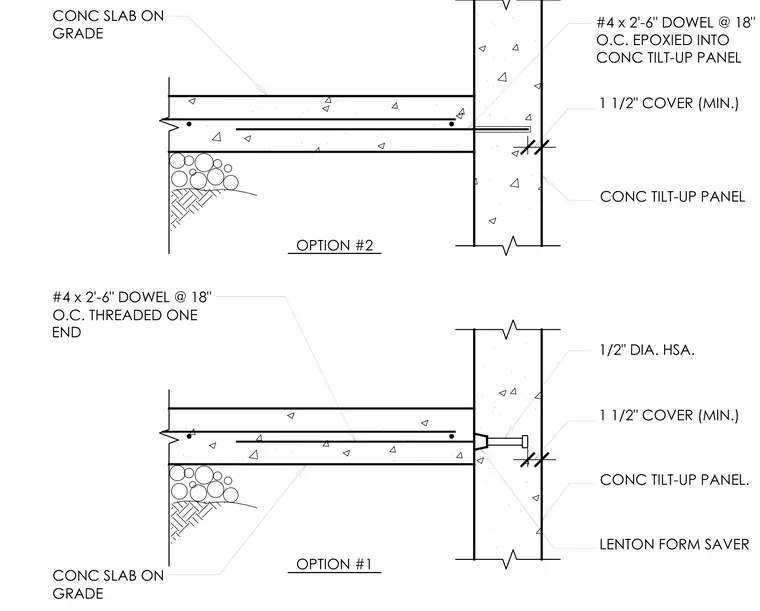

Option 1 connects a concrete slab on grade to a concrete tilt-up panel using a half-inch diameter HSA anchor, a Lenton Form Saver, and number four dowels measuring two feet six inches long at eighteen inches on center threaded one end. Option 2 provides an alternative connection using number four dowels measuring two feet six inches long at eighteen inches on center epoxied into the concrete tilt-up panel with a minimum one and a half inch cover. Both details maintain a minimum one and a half inch concrete cover at the slab interface against the tilt-up wall panel.
1 1/2" COVER (MIN.) OPTION #2 OPTION #1 CONC SLAB ON GRADE CONC SLAB ON GRADE #4 x 2'-6" DOWEL @ 18" O.C. THREADED ONE END LENTON FORM SAVER CONC TILT-UP PANEL CONC TILT-UP PANEL. 1/2" DIA. HSA. #4 x 2'-6" DOWEL @ 18" O.C. EPOXIED INTO CONC TILT-UP PANEL 1 1/2" COVER (MIN.)
