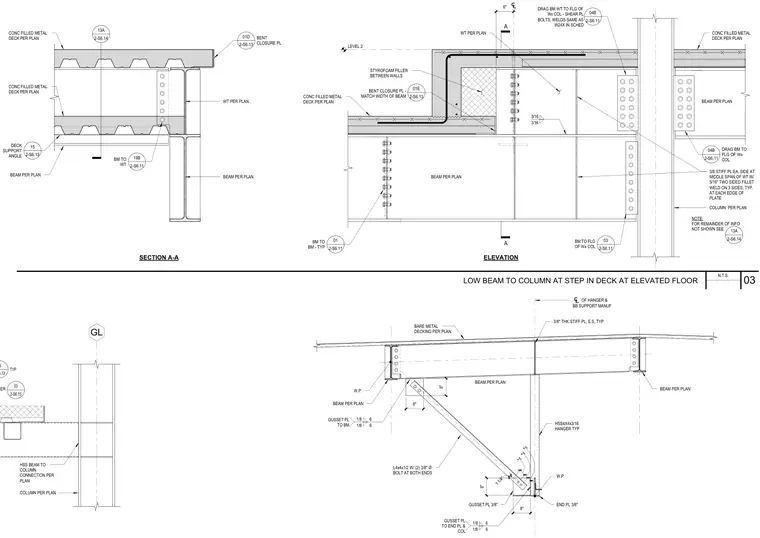

A stepped floor condition at an elevated concrete-filled metal deck frames into a structural steel column and supporting beam assembly. A WT section acts as a drag beam framing into the flange of a wide flange column using bolts and welds sized per the structural schedule. A three-eighths-inch thick stiffener plate is welded to each side at the middle span of the WT section with five-sixteenths-inch two-sided fillet welds on three sides. Additional framing conditions include an HSS four-by-four by three-sixteenths hanger supported by a three-eighths-inch gusset plate, end plate connections, and an L four-by-four by one-half angle secured with two three-eighths-inch diameter bolts at both ends.
W.P. W.P. END PL 3/8" GUSSET PL 3/8" OF HANGER & BB SUPPORT MANUF BEAM PER PLAN BARE METAL DECKING PER PLAN BEAM PER PLAN BEAM PER PLAN L4x4x1/2 W/ (2) 3/8" Ø BOLT AT BOTH ENDS 2" 2" 3" 1 1/4" 8" 8" 3/8" THK STIFF PL, E.S, TYP HSS4X4x3/16 HANGER TYP 1/8 6 1/8 6 GUSSET PL TO BM 1/8 6 1/8 6 GUSSET PL TO END PL & COL 8" 8" NOTE: FOR REMAINDER OF INFO NOT SHOWN SEE 13A 2-S6.14 STYROFOAM FILLER BETWEEN WALLS 6" LEVEL 2 BEAM PER PLAN BEAM PER PLAN CONC FILLED METAL DECK PER PLAN CONC FILLED METAL DECK PER PLAN COLUMN PER PLAN 01 2-S6.11 BM TO BM - TYP 3/16 3/16 WT PER PLAN 04B 2-S6.11 DRAG BM WT TO FLG OF Wx COL - SHEAR PL BOLTS, WELDS SAME AS W24X IN SCHED 3/8 STIFF PL EA. SIDE AT MIDDLE SPAN OF WT W/ 5/16" TWO SIDED FILLET WELD ON 3 SIDES, TYP. AT EACH EDGE OF PLATE 19B 2-S6.11 BM TO WT SECTION A-A A A ELEVATION 04B 2-S6.11 DRAG BM TO FLG OF Wx COL BENT CLOSURE PL - MATCH WIDTH OF BEAM 01E 2-S6.13 CONC FILLED METAL DECK PER PLAN CONC FILLED METAL DECK PER PLAN BEAM PER PLAN 13A 2-S6.14 15 2-S6.13 DECK SUPPORT ANGLE BEAM PER PLAN WT PER PLAN 01D 2-S6.13 BENT CLOSURE PL 03 2-S6.11 BM TO FLG OF Wx COL GL 03 2-S6.13 TYP HSS TO HSS CONNECTION PER 03 2-S6.15 COLUMN PER PLAN HSS BEAM TO COLUMN CONNECTION PER PLAN N.T.S. 03 LOW BEAM TO COLUMN AT STEP IN DECK AT ELEVATED FLOOR
