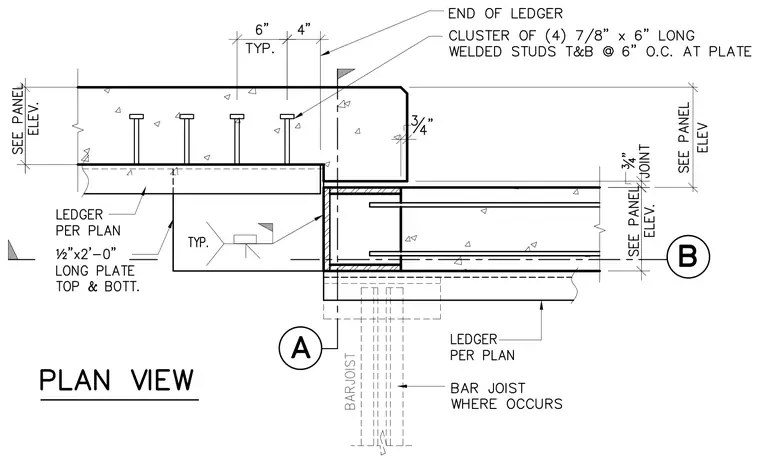

A precast concrete panel ledger connects to a supporting structure using a one-half-inch by two-foot-zero-inch long plate at the top and bottom, secured with a cluster of four seven-eighths-inch diameter by six-inch long welded studs at six inches on center at the plate. A bar joist bears below the ledger where specified per plan, maintaining a three-quarter-inch joint. Additional embedment and ledger sizing follow structural plans.
