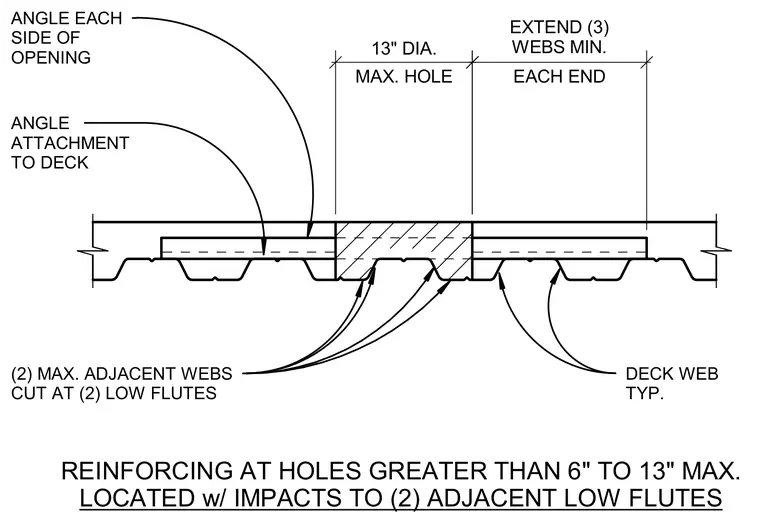

A structural metal deck opening detail showing reinforcing angles placed on each side of the opening. Two maximum adjacent webs are cut at two low flutes to accommodate a maximum thirteen-inch diameter hole. Reinforcing is required for holes greater than six inches up to a thirteen-inch maximum, located with impacts to two adjacent low flutes. The reinforcing angles require attachment to the deck and must extend a minimum of three webs at each end.
ANGLE EACH SIDE OF OPENING ANGLE ATTACHMENT TO DECK (2) MAX. ADJACENT WEBS CUT AT (2) LOW FLUTES DECK WEB TYP. REINFORCING AT HOLES GREATER THAN 6" TO 13" MAX. LOCATED w/ IMPACTS TO (2) ADJACENT LOW FLUTES MAX. HOLE 13" DIA. EACH END EXTEND (3) WEBS MIN.
