Structural · S-B57TS

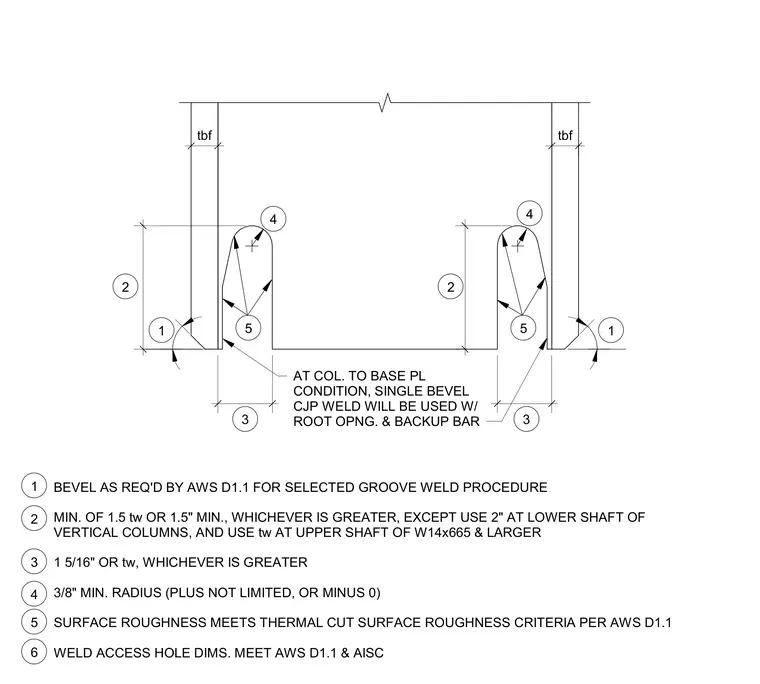

Typical Column Weld Access Hole

Materials

Steel Glass / Glazing

Elements

Columns

Connections

Welded Connection

About this detail

Standard geometric parameters and edge preparations for structural steel column weld access holes. The configuration features a thermal cut access hole with a three-eighths inch minimum radius and a surface roughness meeting AWS D1.1 criteria. Dimensioning requirements dictate a height of one and a half times the web thickness or one and a half inches minimum, with specific exceptions for lower shafts and heavy W14x665 and larger shapes. At column-to-base plate conditions, a single bevel complete joint penetration groove weld is specified with a root opening and backup bar, matching the bevel requirements of AWS D1.1.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
