The assembly features cold-formed metal framing hung from overhead structural steel beams and bare metal decking. Continuous ordinary track with a minimum 14 gauge and metal studs at 16 inches on center attach to the framing. Bearing plates measuring 14 gauge by 2 inches install at 24 inches on center parallel to the top flute, secured with three number 10 self-tapping metal screws at 8 inches to the bare metal deck. Two number 12 self-tapping metal screws at 16 inches on center connect the sill track to the bearing plate. Four number 12 self-tapping metal screws typically fasten the hanger framing. A continuous 2x2 angle of 16 gauge attaches with number 10 screws at each leg and each stud.

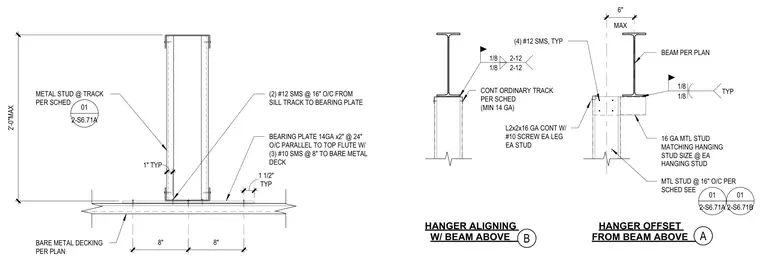

BEAM PER PLAN CONT ORDINARY TRACK PER SCHED (MIN 14 GA) MTL STUD @ 16" O/C PER SCHED SEE MAX 6" 16 GA MTL STUD MATCHING HANGING STUD SIZE @ EA HANGING STUD (4) #12 SMS, TYP HANGER OFFSET FROM BEAM ABOVE HANGER ALIGNING W/ BEAM ABOVE A B 01 2-S6.71A 01 2-S6.71B 1/8 1/8 TYP 1/8 2-12 1/8 2-12 L2x2x16 GA CONT W/ #10 SCREW EA LEG EA STUD BEARING PLATE 14GA x2" @ 24" O/C PARALLEL TO TOP FLUTE W/ (3) #10 SMS @ 8" TO BARE METAL DECK 1" TYP (2) #12 SMS @ 16" O/C FROM SILL TRACK TO BEARING PLATE BARE METAL DECKING PER PLAN METAL STUD @ TRACK PER SCHED 01 2-S6.71A 8" 8" 2'-0"MAX TYP 1 1/2"
