Concrete Slab Demolition at Existing Concrete Shear Wall

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Walls Floors / Slabs Connections / Plates Reinforcing

About this detail

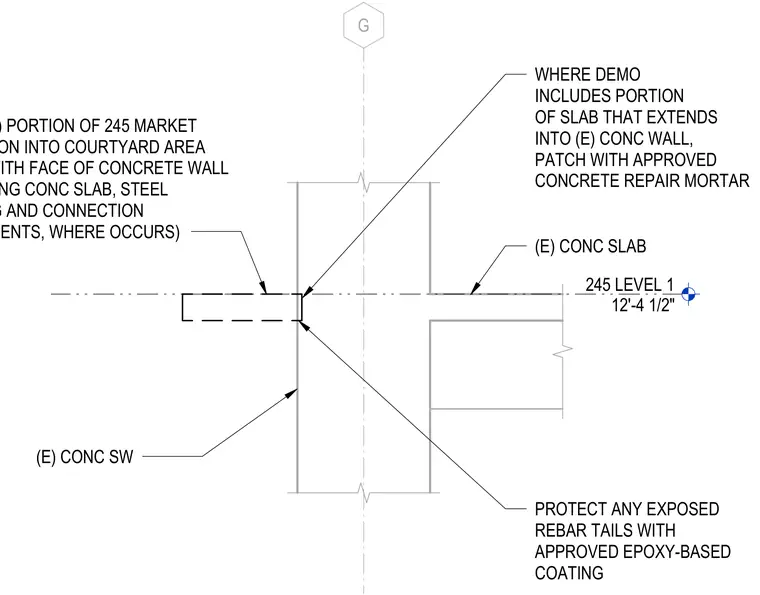

An existing concrete slab framing into an existing concrete shear wall requires partial demolition of the extension into the courtyard area flush with the face of the concrete wall, including the concrete slab, steel framing, and connection components. Where demolition includes a portion of the slab extending into the existing concrete wall, the void must be patched with approved concrete repair mortar. Any exposed rebar tails must be protected with an approved epoxy-based coating.
