A buckling restrained brace connects to a foundation and vertical column through a Grade 50 gusset plate and attachment designed by the brace manufacturer. The gusset plate features a three-quarter-inch snip or radius typical at corners and is left unwelded for a three-quarter-inch distance. Base plate thickness and its connection to the foundation are per frame elevations. The welded or bolted connection details are designed by the buckling restrained brace manufacturer and provided for reference only.

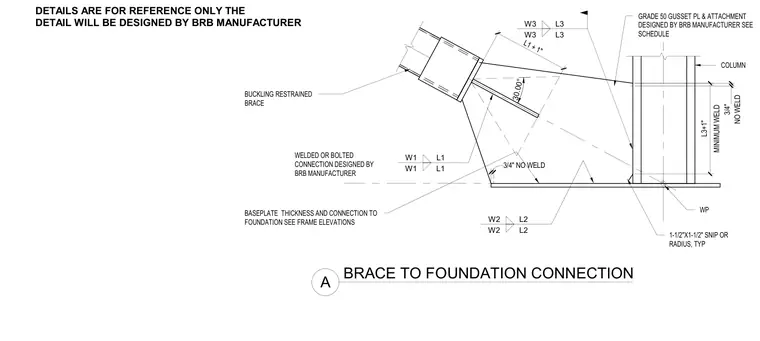

WP GRADE 50 GUSSET PL & ATTACHMENT DESIGNED BY BRB MANUFACTURER SEE SCHEDULE W1 L1 W1 L1 W3 L3 W3 L3 W2 L2 W2 L2 A BRACE TO FOUNDATION CONNECTION L1 + 1" 30.00° BASEPLATE THICKNESS AND CONNECTION TO FOUNDATION SEE FRAME ELEVATIONS BUCKLING RESTRAINED BRACE COLUMN NO WELD 3/4" 1-1/2"X1-1/2" SNIP OR RADIUS, TYP MINIMUM WELD L3+1" 3/4" NO WELD WELDED OR BOLTED CONNECTION DESIGNED BY BRB MANUFACTURER DETAILS ARE FOR REFERENCE ONLY THE DETAIL WILL BE DESIGNED BY BRB MANUFACTURER
